Blueprints — Scale 1:25

Every rig, drawn to scale.

Scaled 1:25 floor plans with full interior dimensions for every rig. View any plan in the browser, or download the PDF to print and share.

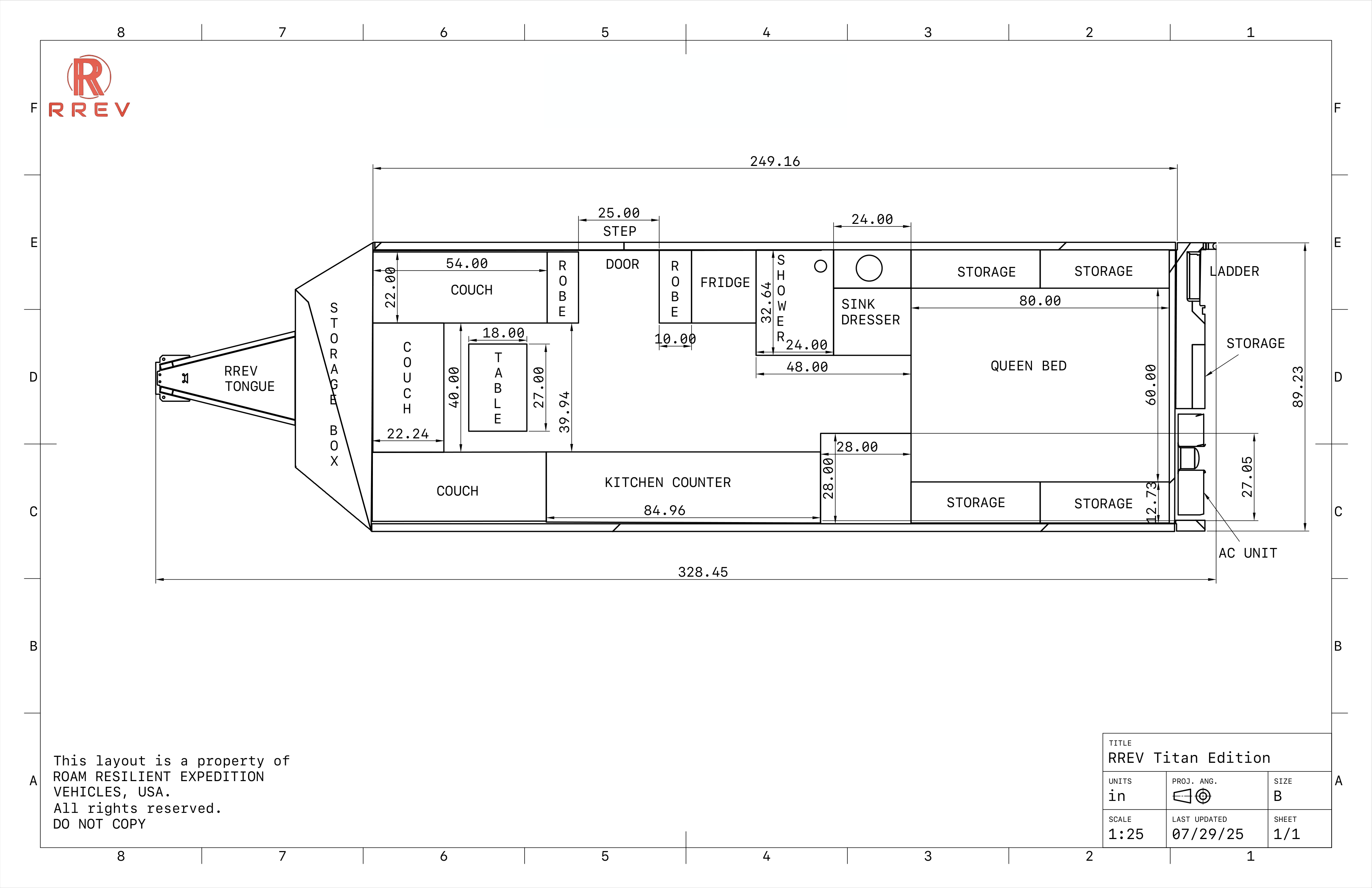

Sheet 01 — Expedition Trailer

Titan Edition

PDFOpen

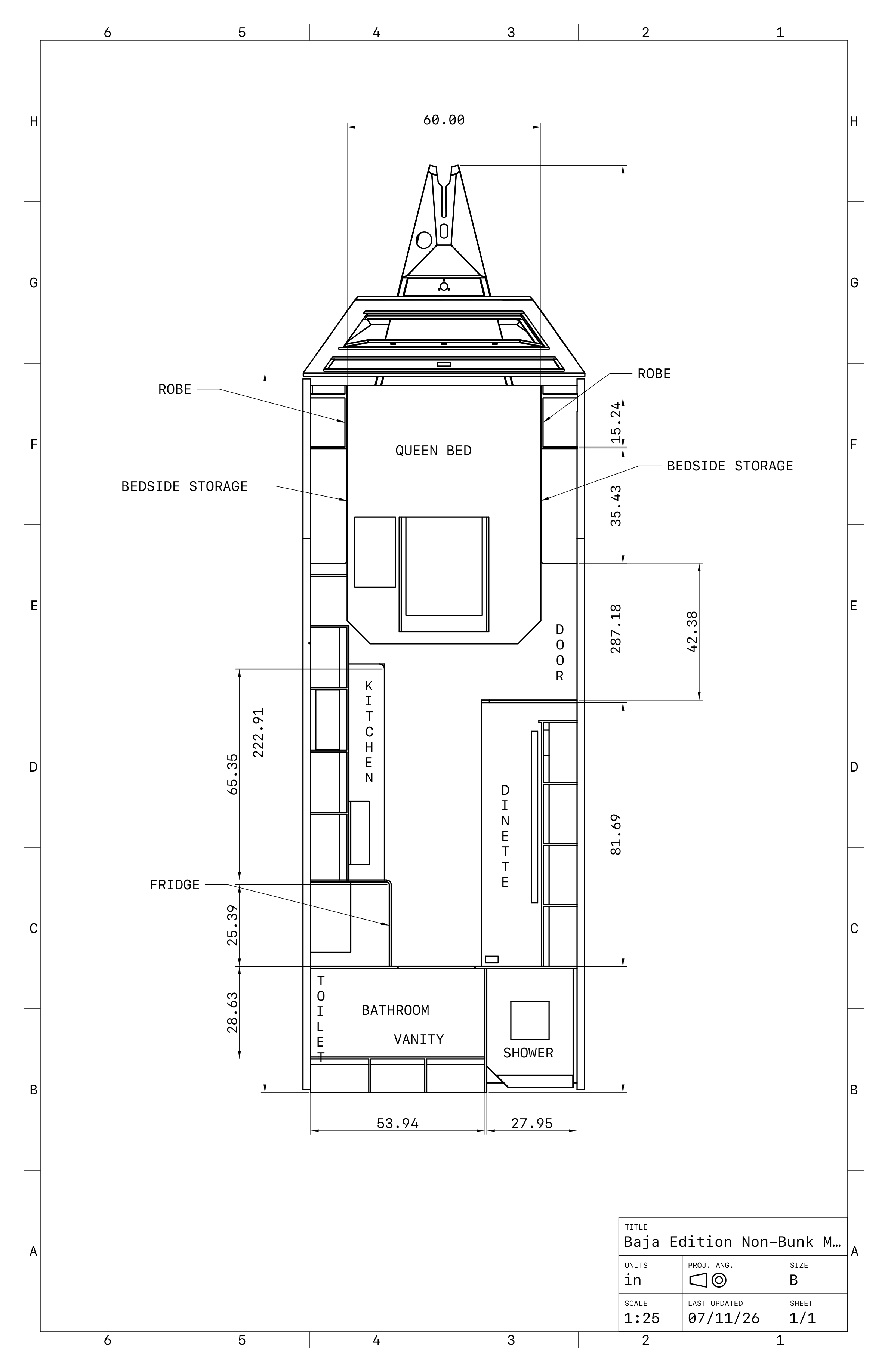

Sheet 02 — Expedition Trailer · Bunk + Non-Bunk

Baja Edition

PDFOpen

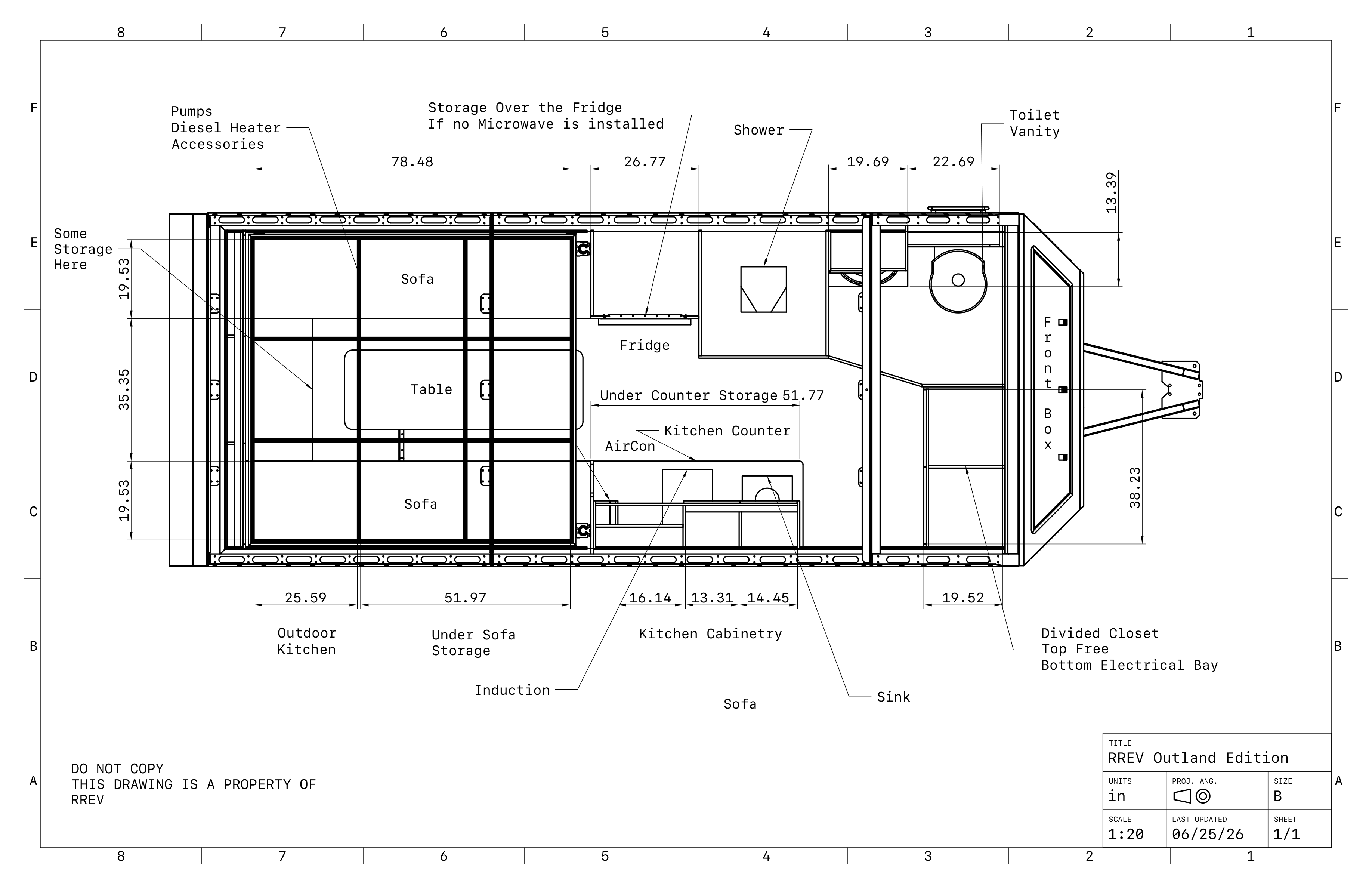

Sheet 03 — Expedition Trailer

Outland Edition

PDFOpen

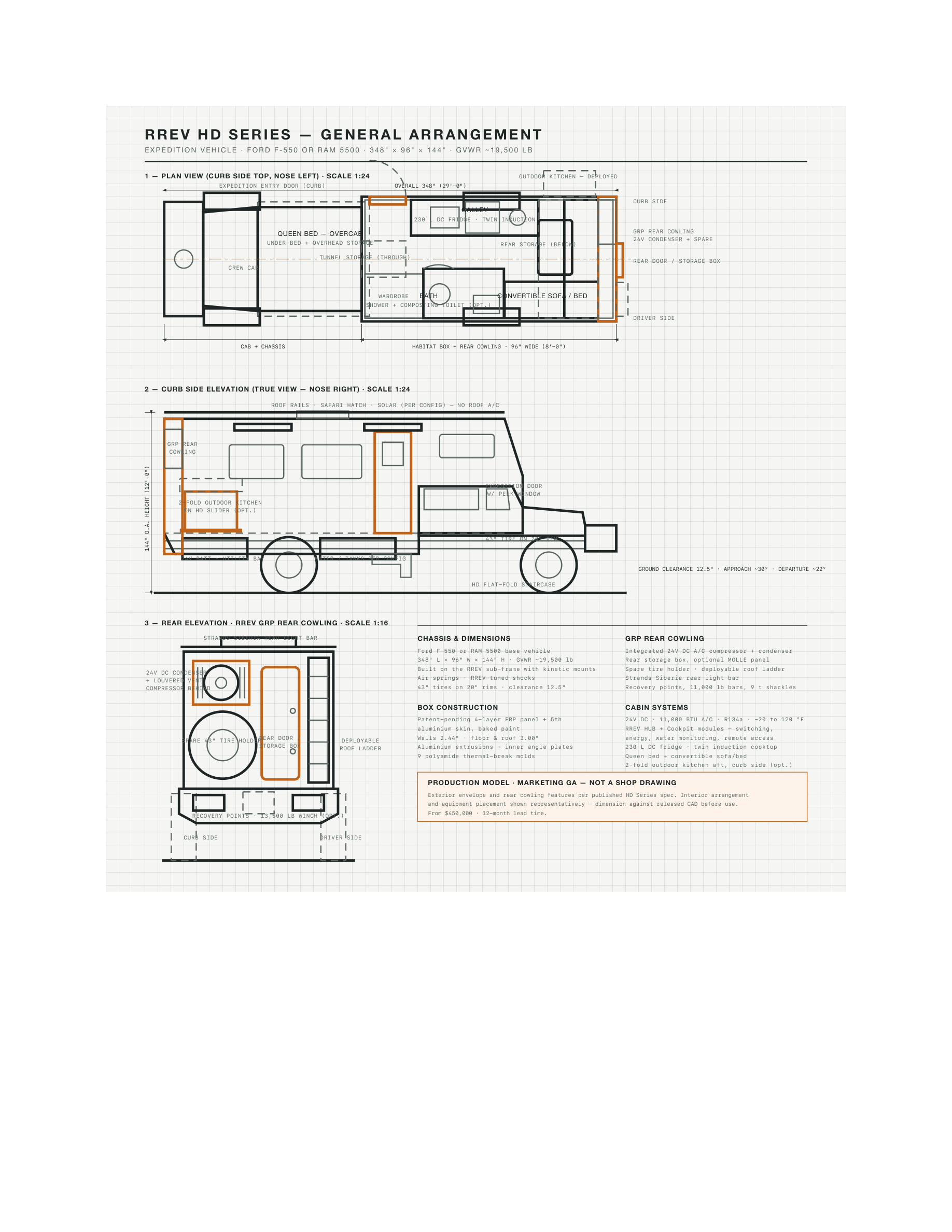

Sheet 04 — Expedition Vehicle

HD Series

PDFOpen

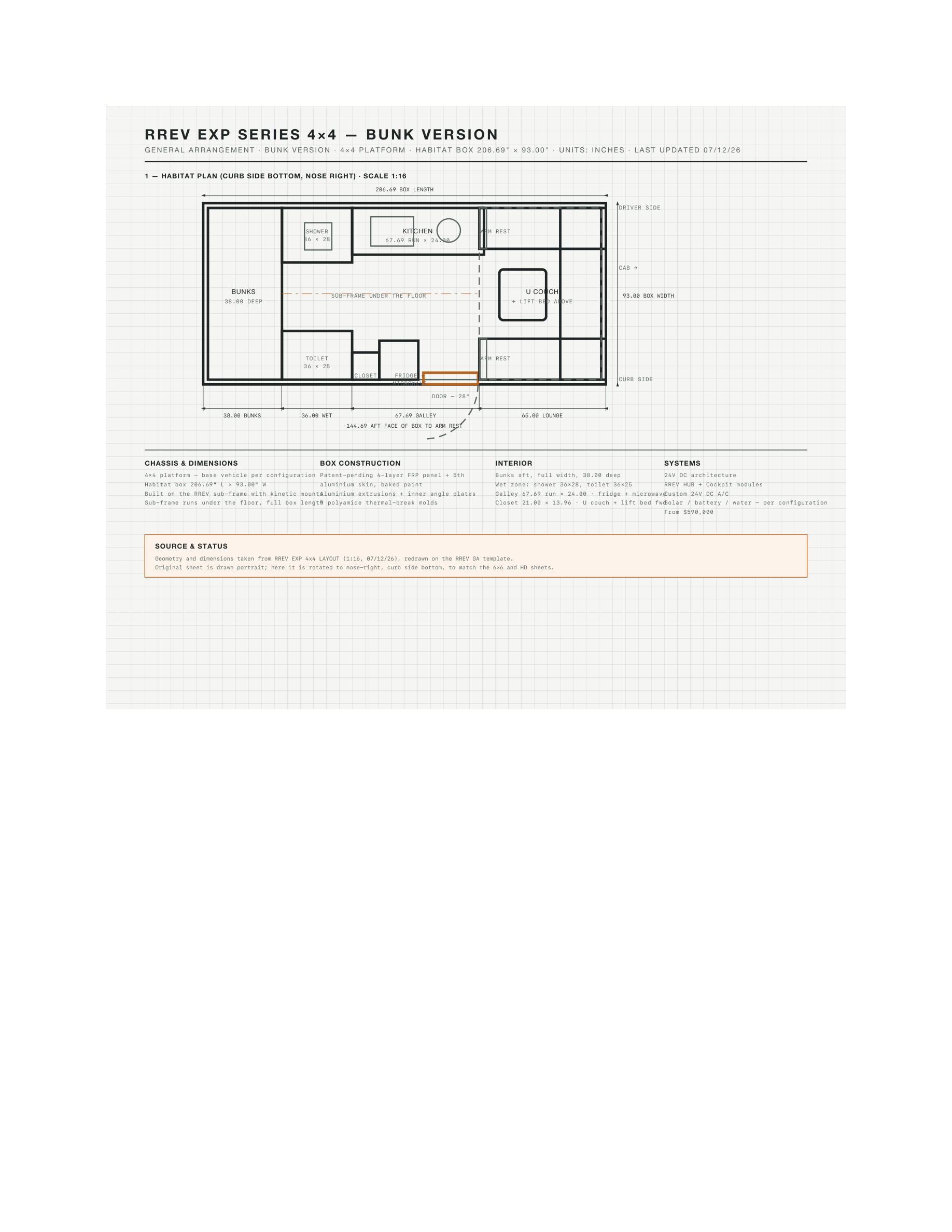

Sheet 05 — Expedition Vehicle · 4×4 + 6×6

EXP Series

PDFOpen
