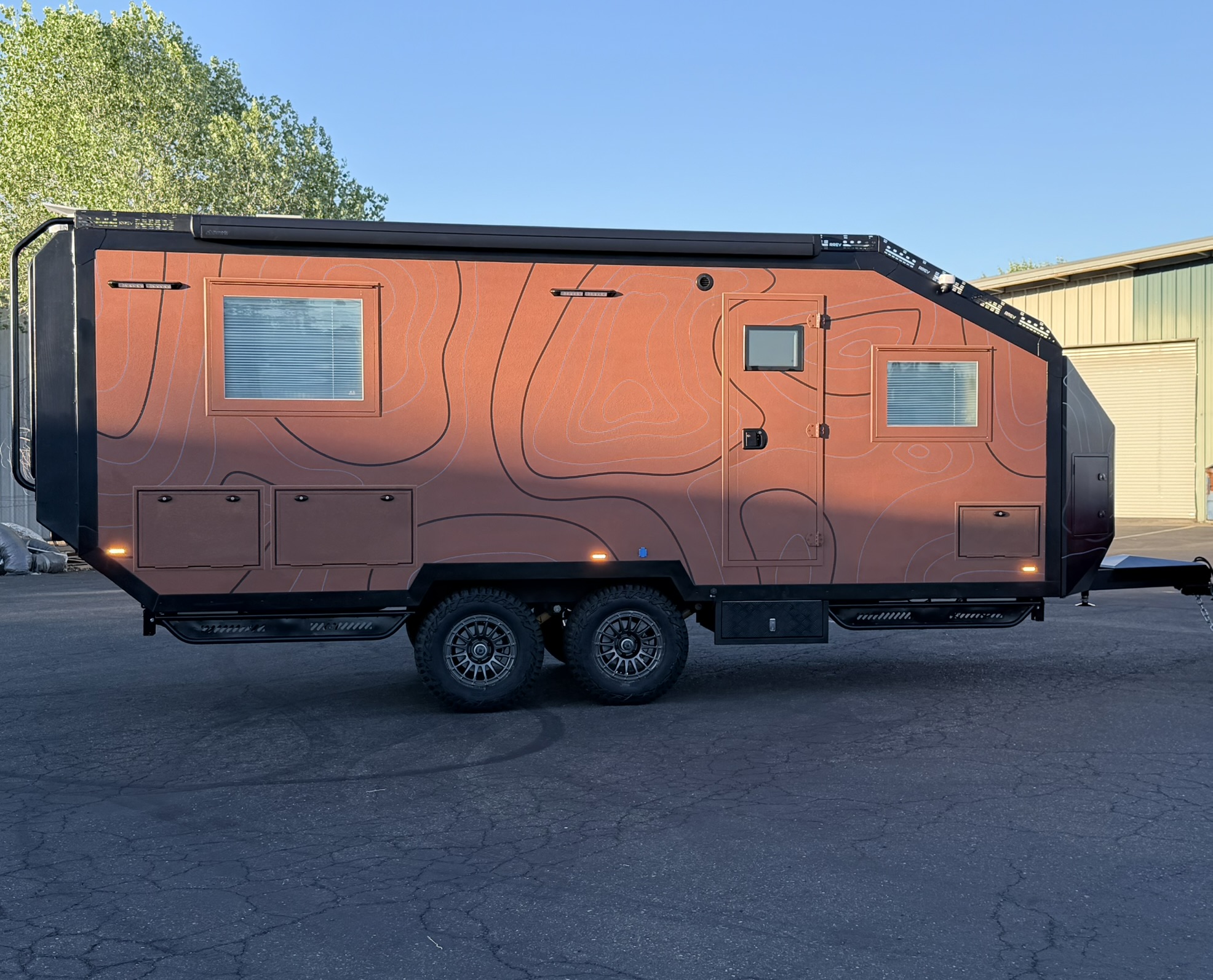

Titan Edition
The big, bad basecamp.
- Deposit
- $30,000
- Build time
- 9–10 months
- Est. delivery
- Aug 2027
Next you choose your options on rrev.shop and see your full price and your payment schedule, with every date. Your deposit locks your build slot; RREV sends you a secure payment link.
Continue to the configuratorFloor plan, cut open
Titan Edition · Queen + couches · Curb side: shower; sink + dresser
RREV Titan Edition · 1:25 · 07/29/25
Inside 248.0 × 82.4 in, measured from the model · drag to orbit
- Couch54.8 × 22.0 in
- Couch, 54 × 22 in, along the curb side.
- Couch22.6 × 38.0 in
- Couch across the front wall, 22.2 in deep.
- Table18.3 × 26.0 in
- Table, 18 × 27 in.
- Couch54.8 × 22.4 in
- Couch along the road side.
- Robe10.6 × 22.0 in
- Robe each side of the entry door, 10 in.
- Fridge20.4 × 22.0 in
- Fridge.
- Shower24.4 × 33.1 in
- Shower, 24 × 32.6 in.

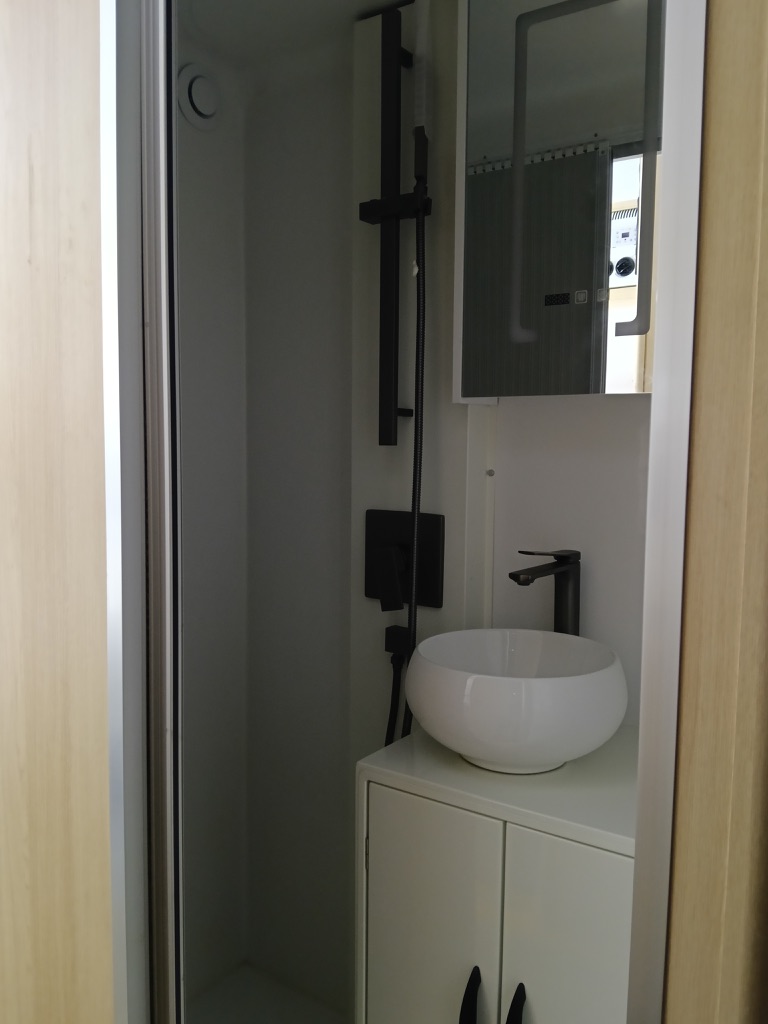

- Sink · dresser24.4 × 33.1 in
- Sink and dresser, 24 in.

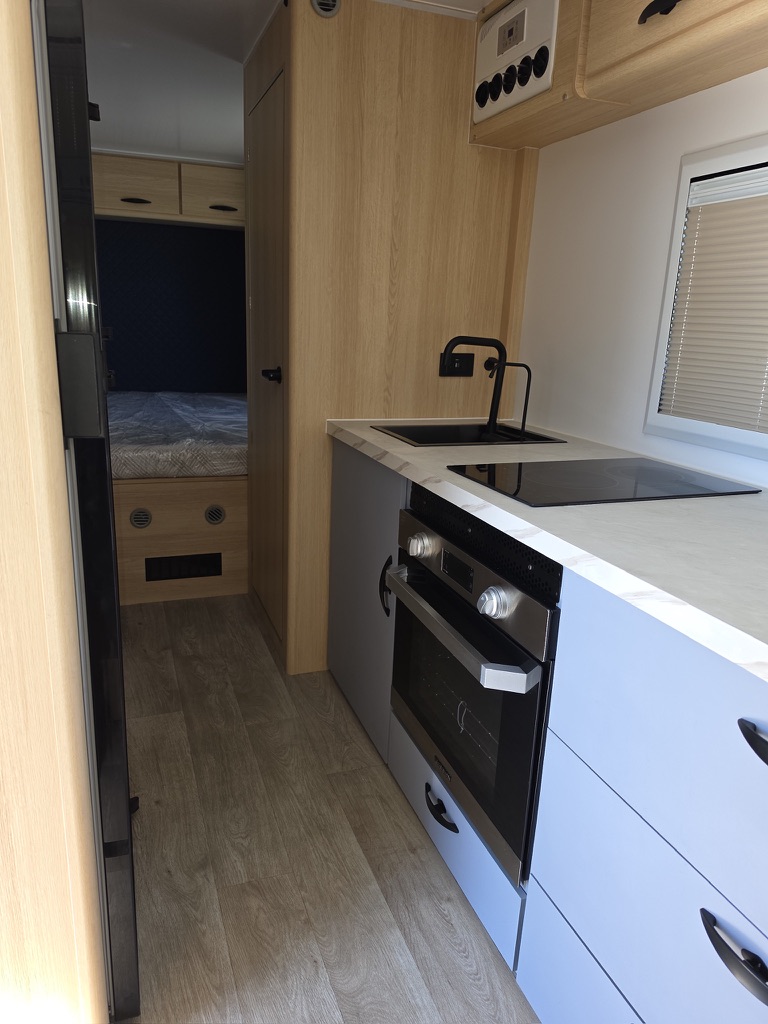

- Kitchen counter86.3 × 22.5 in
- Kitchen counter, 85 in along the road side.
- Cabinet29.1 × 28.4 in
- Cabinet at the end of the counter, 28 × 28 in.
- Queen bed77.8 × 60.0 in
- Queen, 60 × 80, lengthwise at the rear.
- Storage77.8 × 12.7 in
- Two storage cabinets each side of the bed.
Titan (Bunk Edition) floor plan · Queen + 2 bunks + dinette
Rear wet room, full width: shower, toilet, vanity · inside 248.0 × 82.4 in · Titan (Bunk Edition) · Rev A · 2026-09
- Queen, east–west63.0 × 82.4 in
- Runs across the full width under the sloped nose. The two front hatches open into a 63 × 82 in under-bed garage.
- Dinette64.0 × 36.0 in
- Seats five under the existing road-side window. The table drops to make a sixth bed, 64 × 36.
- Galley60.2 × 22.0 in
- Sink under a new window, two-zone induction, six drawers, lockers above. Starts right at the entry door.
- Fridge22.0 × 25.0 in
- Tall compressor fridge, 22 × 25 × 72.
- Wardrobe34.0 × 24.0 in
- Two doors, hanging plus shelves. Its base is a boot locker behind the existing curb-side hatch. Backs onto the wet room.
- Bunks79.0 × 32.0 in
- Two high, 30 × 75 mattresses: 27.5 and 30.4 in sit-up clearance. Ladder at the dinette end, a rail on the top bunk, a reading light and a 52 × 10 in strip window each.
- Wet room42.0 × 82.4 in
- Shower 40 × 30, composting toilet under one small frosted window, vanity on the rear wall. Entered through a pocket door. The last 6 in of floor follow the departure angle, so the tray base, toilet and vanity are shaped to it.
Titan Edition — Order data · Rev A
Load it up.
Add water and gear and see how much room the Titan Edition has left under its GVWR.
Room for 1,883 lb more before the rig reaches its GVWR.
Configure yours- Precision-built cabinetry
- Smart expedition storage system
- Expedition-grade structure
- Full off-grid capability
- Available Bunk Edition floor plan
- Redefining large-size expedition trailers
Heavy Duty 13,000+ lbs (Tandem standard) rated in-house engineered RREV Independent Suspension Swing Arm (ISA) suspension. Triple configuration is optional.
- Built with HD DOM Tubing
- Buckling Load Rating of 18,550 N
- 4,300+ lbs Load Capacity per Arm
- 4 Air Springs with aluminum base, inbuilt bump stops and RREV custom tuned shocks - optional Radflo + RREV custom shocks with adjuster available
- Air suspension run by RREV OS through the Cockpit modules - independent control of all 4 wheels
- Airing up and down all springs at once
- Independent control of front and rear 2 wheels - great for changing tires or running on a single axle
- Up to 3 presets for freeway, off-road, hitching/unhitching
- Load sharing and terrain-based full time auto leveling (optional)
- 24v ARB Twin Compressor (12v Brushless Twin Optional)
- 5x Solid A356 aluminum T6 heat treatment 16" Matte Black Method Wheels
- 5x 33" Mickey Thompson Boss Baja A/T Tires
- Hydraulic Disc Brakes with 1,600 psi Hydrastar actuator
- Oil bath hubs and bearings - little to zero maintenance
- 10,000 lbs rated webbed limit strap on each swing arm
Walls - 2.44" Thick | Floor & Roof - 3" Thick
- Patent Pending 4 Layer GRP Panels reinforced with 5th layer of aluminum skin with baked paint for durability and resistance
- Aluminum extrusions all across and aluminum angle on the inside
- 9 Industrial grade Polyamide thermal break molds to stop any thermal bridging
- 700L Steel
- Hot Dip Galvanized
- Black Paint
- Expedition door and windows made with aircraft grade aluminum with aluminum handles and weatherproof seals
- Expedition style Safari Hatch with built in windows over the dining area
- 7 windows all around to experience vistas from anywhere in the cabin
- Expedition door with peek window and mesh screen
- All windows come with high quality integrated blackout and mesh screen
- Heavy duty gas struts that allow 90 degree opening - can be open in rain and wind
- Windows integrated with rain fly to avoid water dripping inside when open on a rainy day

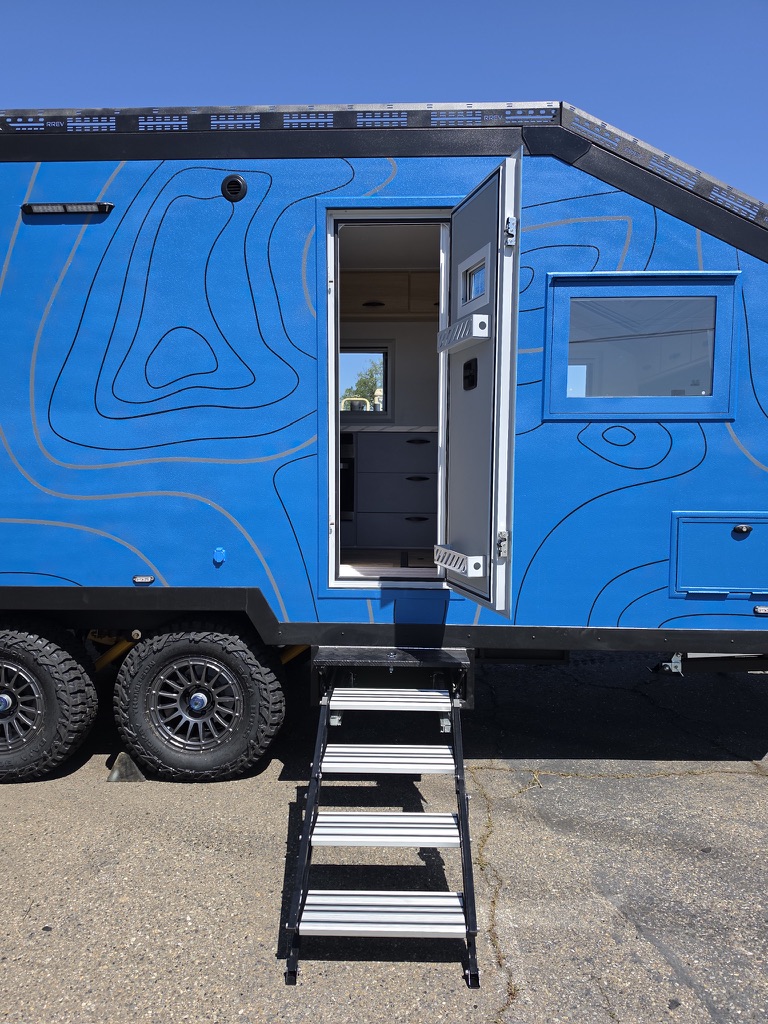

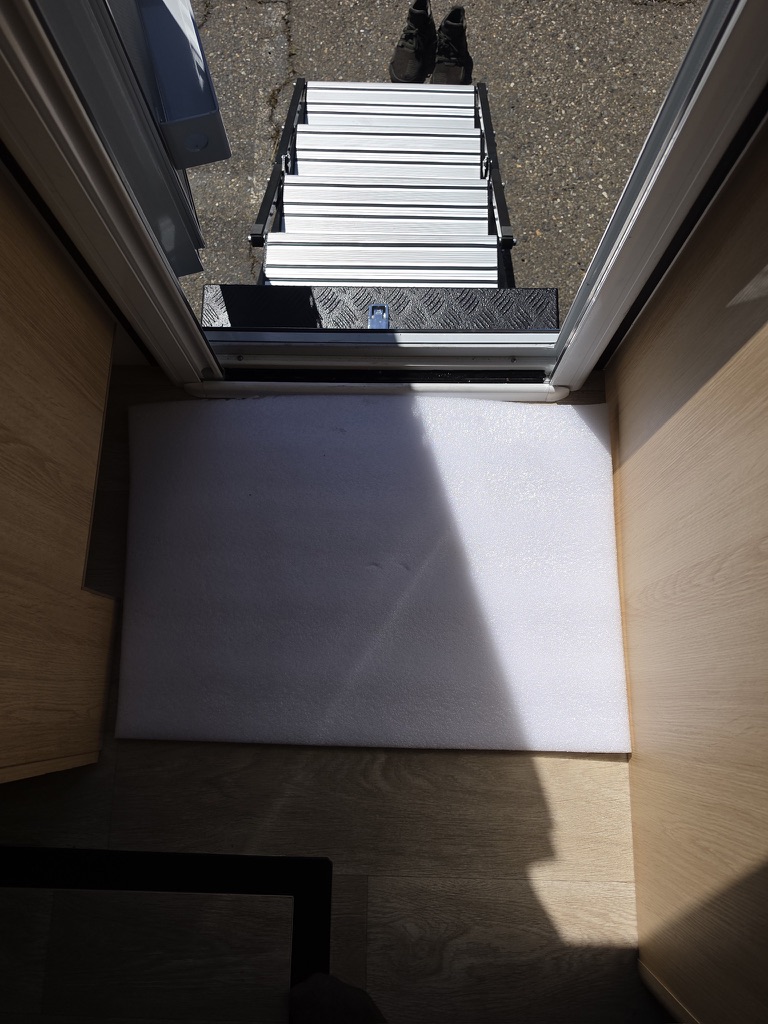

- Motorized 2 step staircase
- Front and Rear Light Bars
- Twin Passenger and Driver side LED lights
- Cruisemaster DO45 Hitch
- 2-Fold Outdoor Kitchen (Optional) — stainless steel, mounted on HD slider, single-burner induction cooktop, hot and cold water connections
- Front ~39" deep storage box with heavy duty locking access doors on front and sides
- Front slope rain collection pipes on driver and passenger side
- Heavy duty aluminum rock sliders (optional)
- Aluminum top roof side rails
- 5,000 lbs electric tongue jack
- 4 Corner Stabilizer Steadies
- 13,500 lbs rear winch (Optional)
- Rear recovery points with 11,000 lbs rated bars and fully forged 9 Ton WLL shackles
- RREV signature GRP custom molded rear cowling with integrated 24v DC AC Compressor Condenser, deployable ladder, rear storage box with optional Molle Panel, and 33" spare tire holder

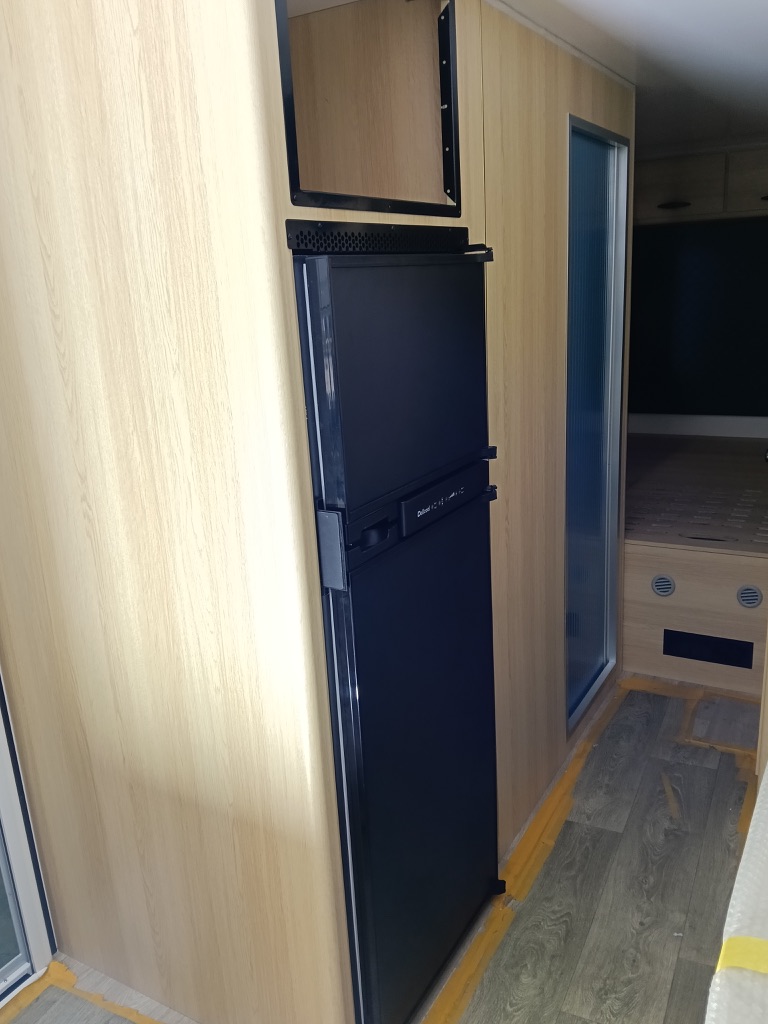

- 230L DC fridge with 5 temperature settings and Night mode - anti-vibration and off-road ready locking mechanisms, Black color
- Furrion 0.9 cu.ft. RV Microwave Oven (Optional)

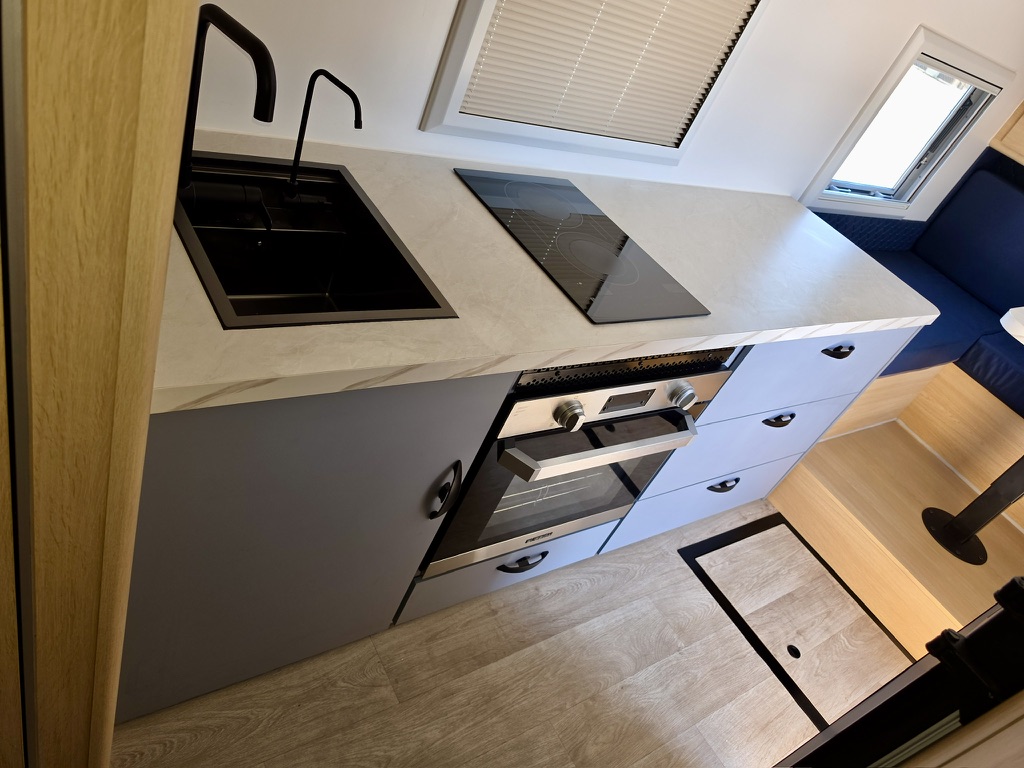

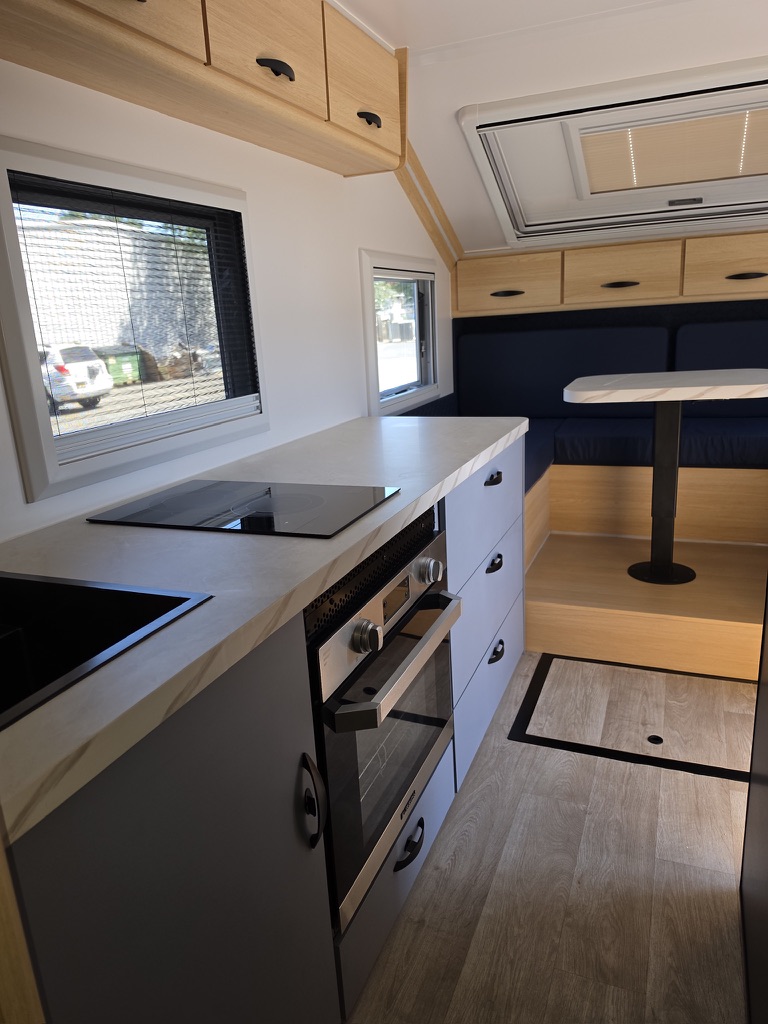

- Twin burner induction cooktop with full glass touch screen, 9 temperature settings, safe cooking feature
- Optional Microwave/Air Fryer Inbuilt

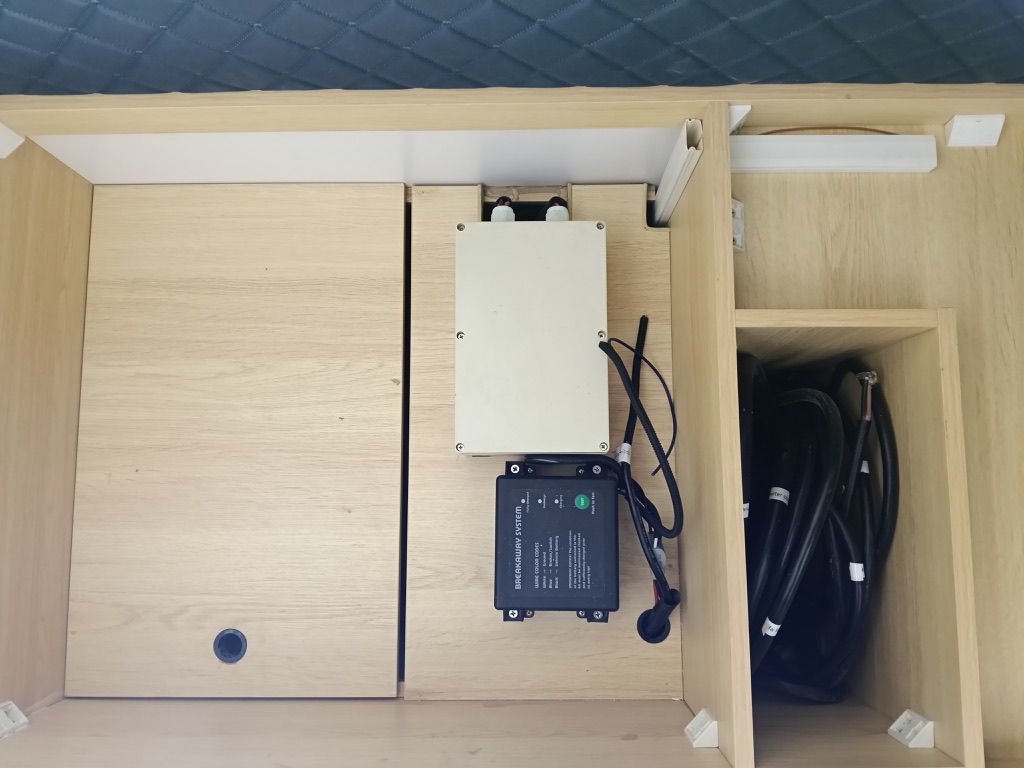

In-house engineered HUB — the RREV-built energy and control system, and the brain of the whole rig. It runs energy (solar, shore and tow-vehicle charging, battery bank, inverter), air suspension, awning, lighting, vent fans, steps and more, from one system rather than a stack of third-party boxes.
- 24v 400AH Lithium Battery Bank with smart BMS integrated with RREV OS - upgradeable to 800AH
- Samsung Android Touch Screen Control Panel (standard) - can option for Apple iPad
- Three high quality 52v | 450W rigid solar panels wired in series - upgradeable to 4x 450W
- HUB integrated 2400W 24v Victron Energy MPPT Solar Charger
- RREV OS integrated 3000W 24v | 120V | 70 Amp Victron Energy Inverter Charger
- RREV OS integrated 50A DC-DC Charger with 50A Andersen plug at tongue
- RREV OS integrated 50A Andersen connection for additional portable solar charging
- Multiple 120V outlets inside and outside the camper
- 12v/24v USB outlets with fast charging - 12v step down with busbar for additional 12v connections
- RREV OS app for web, Android and iOS - Remote Access + Spotty free for the first year, then a yearly plan (current rate on the RREV OS page)
- Custom 65 Gallon Stainless Steel General Water Tank with baffles, independent pump - marine style pickup tube
- Custom 16 Gallon Stainless Steel Buffer Tank with baffles, independent pump - marine style pickup tube
- Custom 10 Gallon Stainless Steel Drinking Water Tank with water filtration system (Optional)

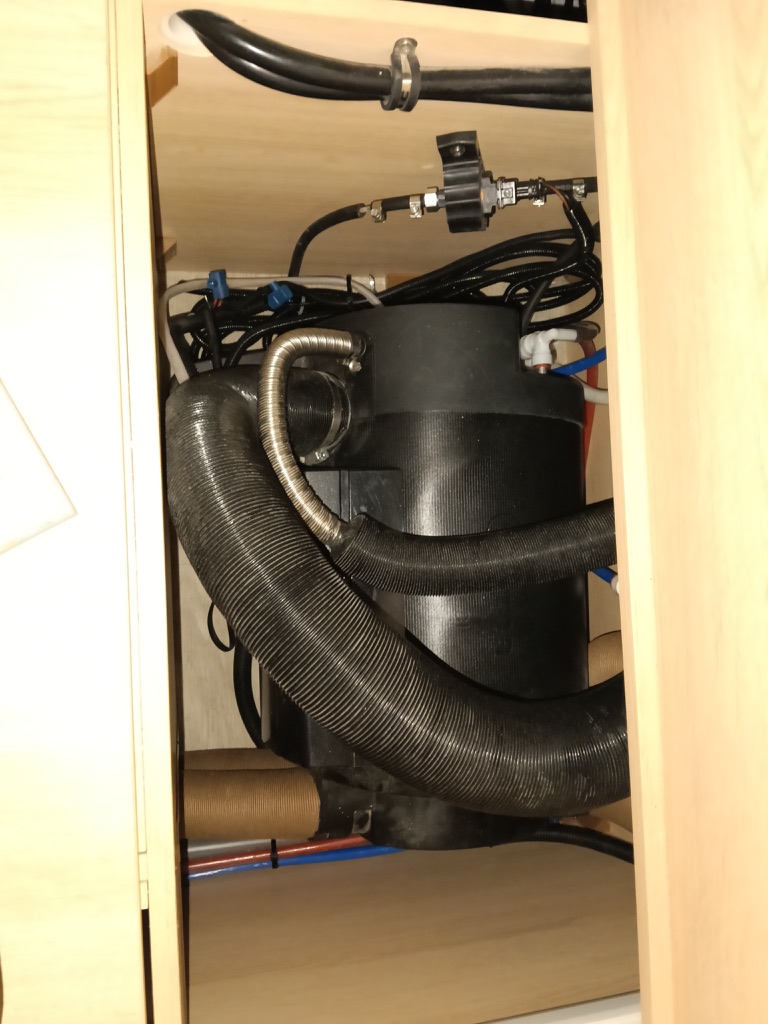

- Truma Combi Diesel Water Heater
- 26 Gallon Gray Water Tank
- All plumbing and tanks (except gray tank) inside - no problems with extreme cold
- iNet Ready Truma Combi Diesel Heater for air and water heating
- Ducted heating with outlets - 3 under the bed towards the alley, 1 above the fridge and 1 in the bathroom
- Custom made 24v DC | 11,000 BTU Air Conditioner
- Automotive grade R134a cooling agent for easy recharge if and when needed
- -20F to 120F
- Dry Weight: ~6,300 lbs (Tandem) | +450 lbs (Triple)
- Tongue Weight: ~630 lbs (adjustable with air suspension)
- GVWR: 9,000 lbs
- Suspension: 14,500 lbs (Tandem) | 17,000 lbs (Triple)
- Track Width: 72"
- 20.8ft Box | 27ft Long | 7.3ft Wide
- Height is adjustable (Air suspension)
- 4 People (Non-Bunk)
- Queen Size Bed
- Convertible U-Sofa to Bed
Same Titan shell and chassis with a family interior. The interior details elsewhere on this page describe the Non-Bunk floor plan.
- Queen (60 × 80), east–west across the nose, with an under-bed garage behind the two front hatches
- Two bunks, 30 × 75, two high, each with a reading light and its own strip window
- Dinette seats five and drops to a bed, 64 × 36

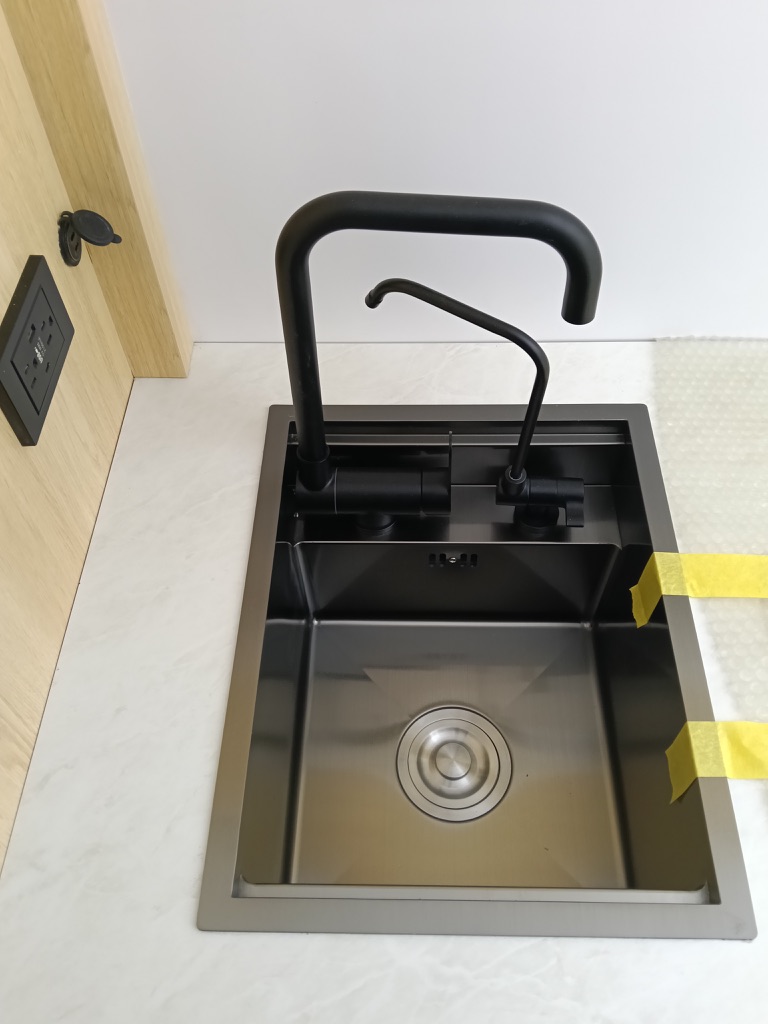

- Galley on the curb side with sink under a new window and two-zone induction
- Tall compressor fridge and a two-door wardrobe with a boot locker in its base

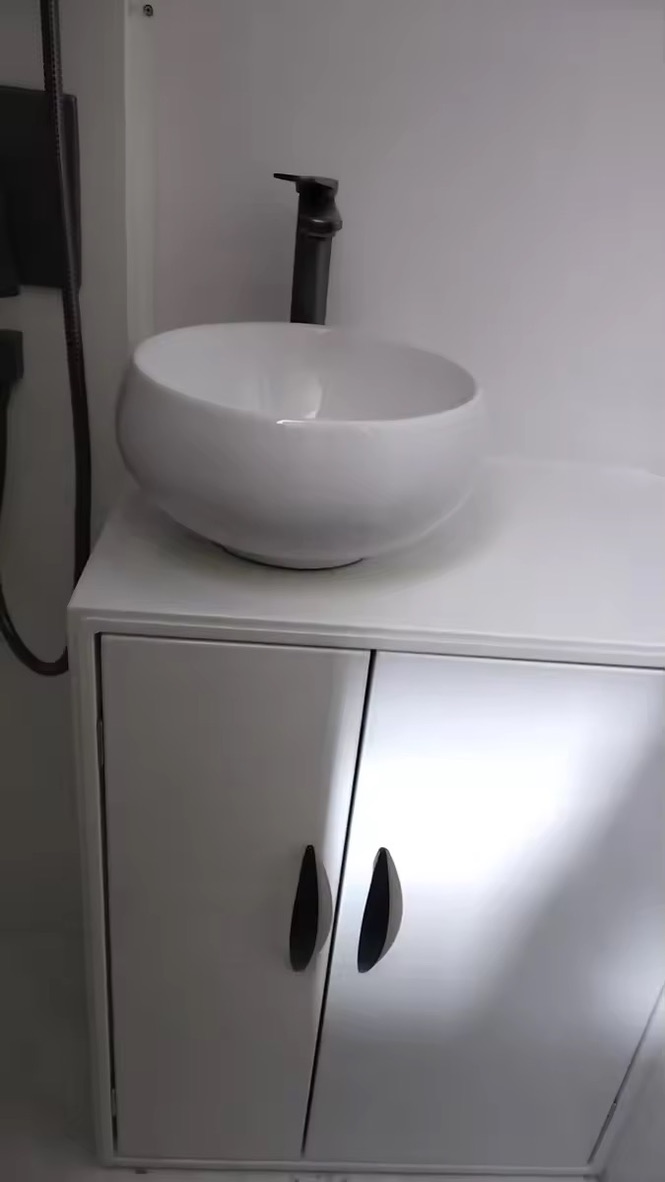

- Full-width rear wet room: shower, composting toilet and vanity
- Inside 248.0 × 82.4 in, measured from the model

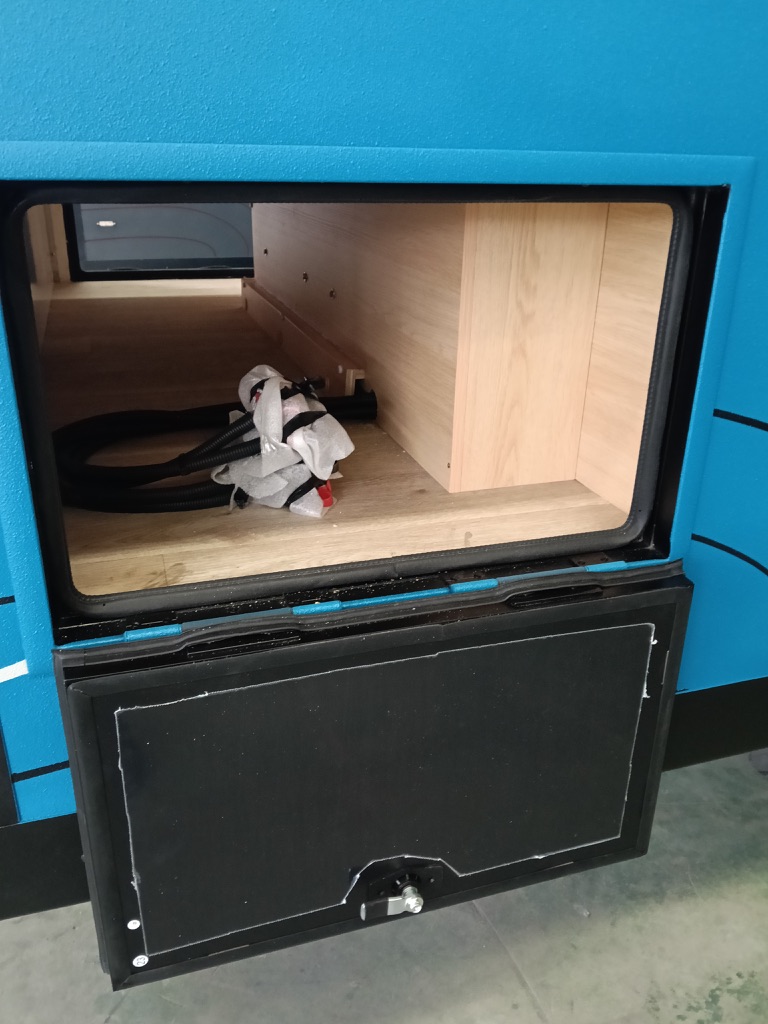

- Outside - Driver side access cabinet with heavy duty weatherproof locking door
- Outside - Massive front storage box with 3 heavy duty weatherproof locking doors
- Kitchen: 4 overhead cabinets, 1 large storage cabinet, 3 sliding drawers, under sink and near floor storage

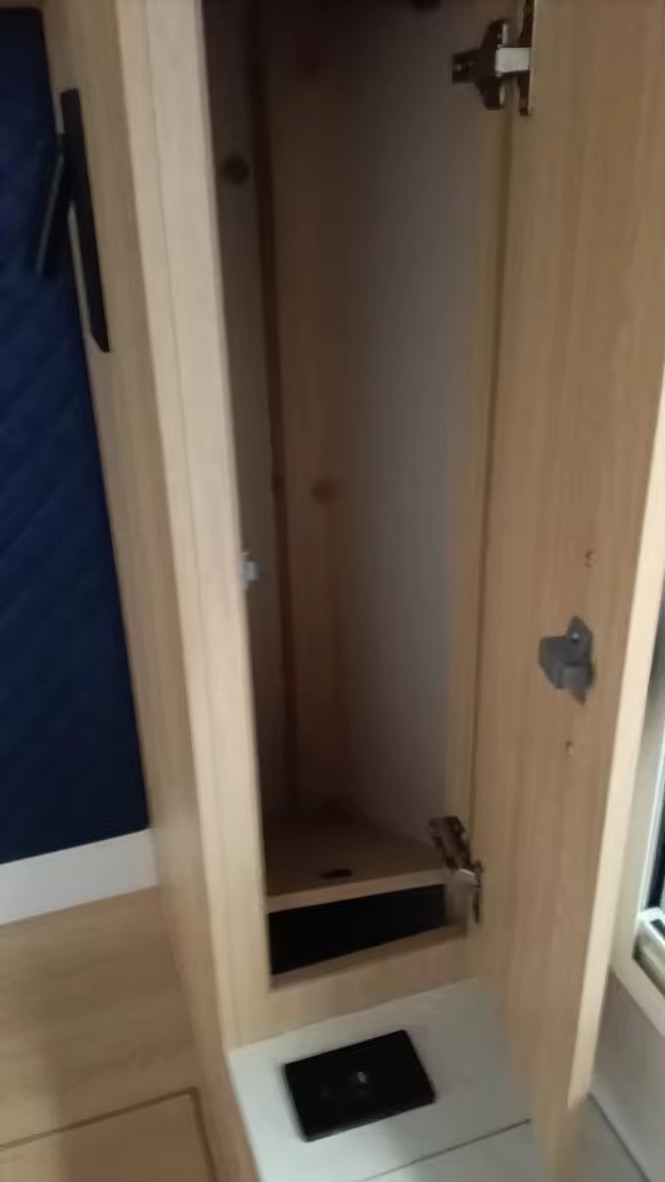

- Bed: 4 overhead cabinets, 2 side closets, 2 bedside lift door cabinets, 1 bottom drawer, 2 bedside pockets, large under-bed storage with hatch
- Dinette: 3 overhead cabinets, 2 under-dinette near floor drawers
- Bathroom: 3 overhead cabinets, 2 top shelves, 3 under-countertop shelves, 1 drawer and 2 storage spaces with doors
- All doors locked with aluminum locking handles for on and off-road stowing

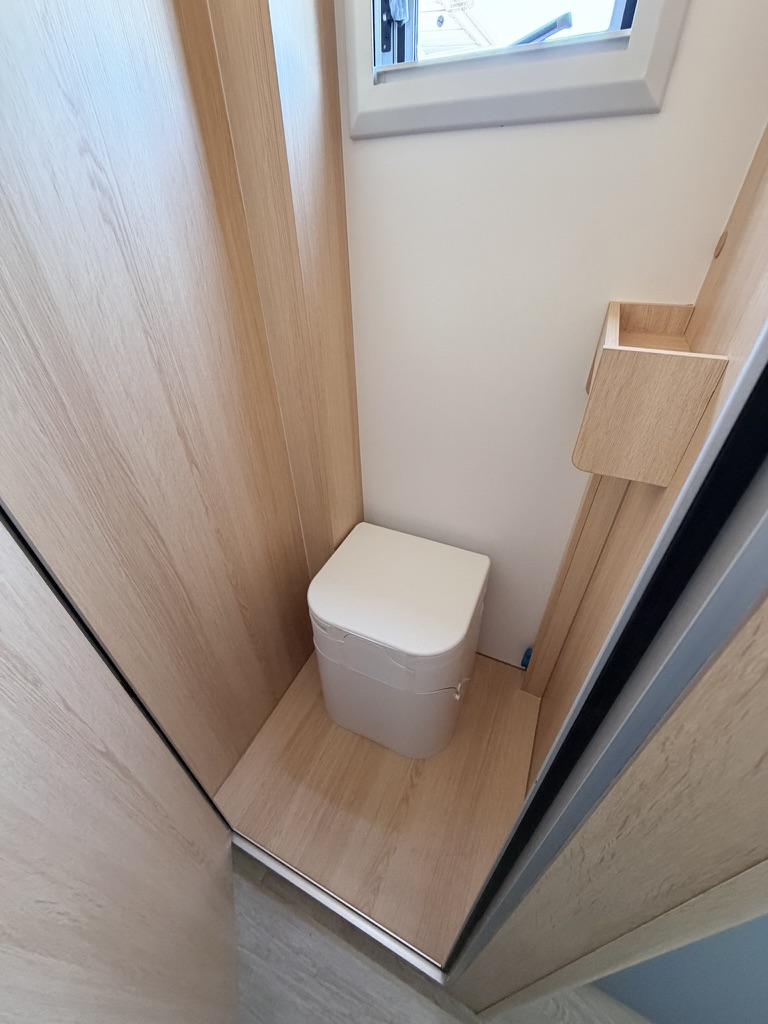

- OGO Composting Toilet (Optional)
- Tiny Separett (Optional)
- Cinderella Incinerator Toilet (Optional)
- Cruisemaster DO45 Hitch with 360 degrees of articulation
- 10,000 lbs rated and ADR Compliant
- 15 years frame
- 2 years craftsmanship (Regular Recreational Use Only; not applicable to full-time living)
- Applicable appliance manufacturers warranty for all equipment
- 9-10 months
Every Titan Edition is custom-configured to your mission. Options, add-ons, and bespoke builds available. Speak with our team to discuss your requirements.
Speak with our teamMake it yours
What the technology packs do, and RREV OS itself: RREV OS & Packs.
Exterior Color · pick one
- Armor Paint Finish+$7,000
White · Light Gray · Basalt Gray · Beige · Light Brown · Blue · Green · Olive Green · Orange · Flame Red
Axle Configuration · pick one
- Triple Axle Upgrade+$8,500
Shock Absorbers · pick one
- Custom RREV-RADFLO 2.5 with Adjuster (Tandem)+$4,500
Optional upgrade for standard swing arms.
Suspension Add-ons
- ARB Twin Brushless Compressor+$400
Optional high-output compressor for the air suspension.
- ARB Air Inflation Kit+$150
ARB Pump Up Kit — 23 ft high-temp hose, quick-connect couplings, 150 psi rated.
- Sway Bar Option+$550
Sway bar allows you to run the trailer at higher speeds on the freeway with a lot of safety around sway issues caused by high speed corners. Two needed for Tandem and three for Triple
- HD Swing Arms (Tandem)+$4,800
Technology Add Ons
- Technology Package+$12,500
The Technology add-ons together in one package. Your quote lists exactly what’s included.
- Autoleveling+$2,500
Pressure-based, corner-by-corner self-leveling with presets and cargo bias compensation.
- Weight Scale+$1,800
Live per-corner load, total weight, tongue weight estimate and a fishtail risk indicator.
- Overland Sentinel+$2,500
Real-time motion intelligence and diagnostics from the IMU: live G-forces, sway warning while towing, bump-severity scoring, vibration timeline, drive-smoothness coaching, roll-over alert, 24-hour motion history and an automated air-system leak test. Map features need the GPS Module.
- GPS+$1,800
Onboard multi-constellation GNSS receiver: live position, heading, speed, altitude and satellite fix, plus the Overland Sentinel Map view. Required for any GPS or navigation feature.
- Digital Awning Control Module+$500
Dashboard control of the powered awning (extend, retract, stop, presets). Without it the awning runs on the manual wall switch only.
- Dust & Smoke Reduction System (DSR)+$4,500
Cabin air filtration — military-grade Vortex pre-filter + AC Affinity charcoal final stage.
- Spotty VoiceBeta+$1,200
Lifetime (stays with the rig). Or $39/month after a 14-day free trial, cancel any time. Monthly belongs to the owner and ends if the rig is sold; switch to Lifetime any time.
"Hey Spotty": voice and chat control of the whole rig. Ask for tank levels, battery and pressures; command lights and pumps; stage air moves with spoken confirm on capable builds. Runs on the rig and works offline; stop and cancel always work. Lifetime: $1,200 once, stays with the rig.
Electrical
- Victron Orion XS 1400 DC-DC Charger+$450
- 800AH Battery Bank Upgrade+$4,800
- 4th Solar Panel (450W)+$800
This is a 52v Solar Panel.
- iPad Control Panel (vs Samsung)+$300
- Victron Energy Lynx Smart BMS 1000 NG (M10)+$1,249.50
External battery management system required for the Victron Lithium NG battery banks. Not included in the battery price.
- Victron Energy Lithium NG Battery 25.6V 400Ah (2 x 200Ah)+$5,667.80
Victron Lithium NG battery bank, 25.6V 400Ah (2 x 200Ah). Requires the Lynx Smart BMS 1000 NG, priced separately.
- Victron Energy Lithium NG Battery 25.6V 800Ah (4 x 200Ah)+$11,335.60
Victron Lithium NG battery bank, 25.6V 800Ah (4 x 200Ah). Requires the Lynx Smart BMS 1000 NG, priced separately.
- Victron Energy Orion 24/12-70 DC-DC Converter+$130
Additional 12V output from the 24V system — for heavy 12V loads outside the camper.
Kitchen
- Microwave Oven Add-on+$800
- Electric Oven Add-on+$2,200
- Microwave/Air Fryer Combo+$1,200
- Step Down Outdoor Kitchen+$2,150
Step-down configuration of the slide-out kitchen.
- Furrion 1.9cu Microwave (Over-the-Fridge)+$1,100
Over-the-fridge placement. Available on Titan and Outland; not offered on Baja for now.
Exterior Equipment
- Heavy Duty Rock Sliders+$4,500
- A2 Electric Legless Awning+$3,500
Electric awning, no rear support legs required.
10'1" (300 cm) · 11'6" (350 cm) (+$300) · 13'1" (400 cm) (+$400)
- Roof Rails+$2,000
Powder-coated roof rails with integrated mounting system — mounting base for the awning and roof-mounted gear.
- HD 4 Corner Stabilizers (Actuated)+$4,400
Electrically actuated heavy-duty corner stabilizers.
- 3 Position Slide-Out Staircase+$2,800
Three-position deployable staircase. Replaces the standard motorized steps.
- Actuated Motorack+$4,800
Hydraulic actuated rear moto rack — 450 lbs capacity, remote-controlled.
- HD Aluminum Recovery Boards+$990
Aluminum recovery boards rated for 5-6 ton vehicles — traction and bridging in one tool.
- Molle Panel (Rear)+$300
- Rhino Hitch (Anodized, 7" Drop/Rise)+$394.99
2 Inch · 2.5 Inch (+$110) · 3 Inch (+$170)
Toilet · pick one
- OGO Composting Toilet+$1,800
- Tiny Separett+$2,200
- Incinerator Toilet+$4,500
Security
- 360 Security Camera (3-Camera Kit)+$1,900
4 solar powered cameras (4K) and 1 TB Hard Drive
- Hitch Lock - DO45++$150
Connectivity
- Starlink Mini+$999
Compact satellite internet — works anywhere with sky.
- Peplink MAX-BR1-MINI with ANT-MB-42G-S-B-6 Antenna+$1,600
Cellular 5G router with external antenna. Equipment + installation included.
Accessories
- Beddys Gentry Luxe Zipper Bedding+$464.95
Minky · ZipBase · Cotton · ZipBase (+$10)
- Beddys Rowan Luxe Zipper Bedding+$464.95
Minky · ZipBase
- Extra Temp/Humidity Sensors for Fridge & Freezer+$50
Current prices for the Titan Edition, updated from RREV’s build system. Prices may change; your quote confirms them. Start My Build
Questions about the Titan Edition?
Ask Spotty. He knows every spec, layout and option, and he can help you order.
Order your
Titan Edition
Secure your build with a $30,000 deposit. Delivery in 9-10 months. Every unit hand-built in California.
Start your order — $30,000 deposit
