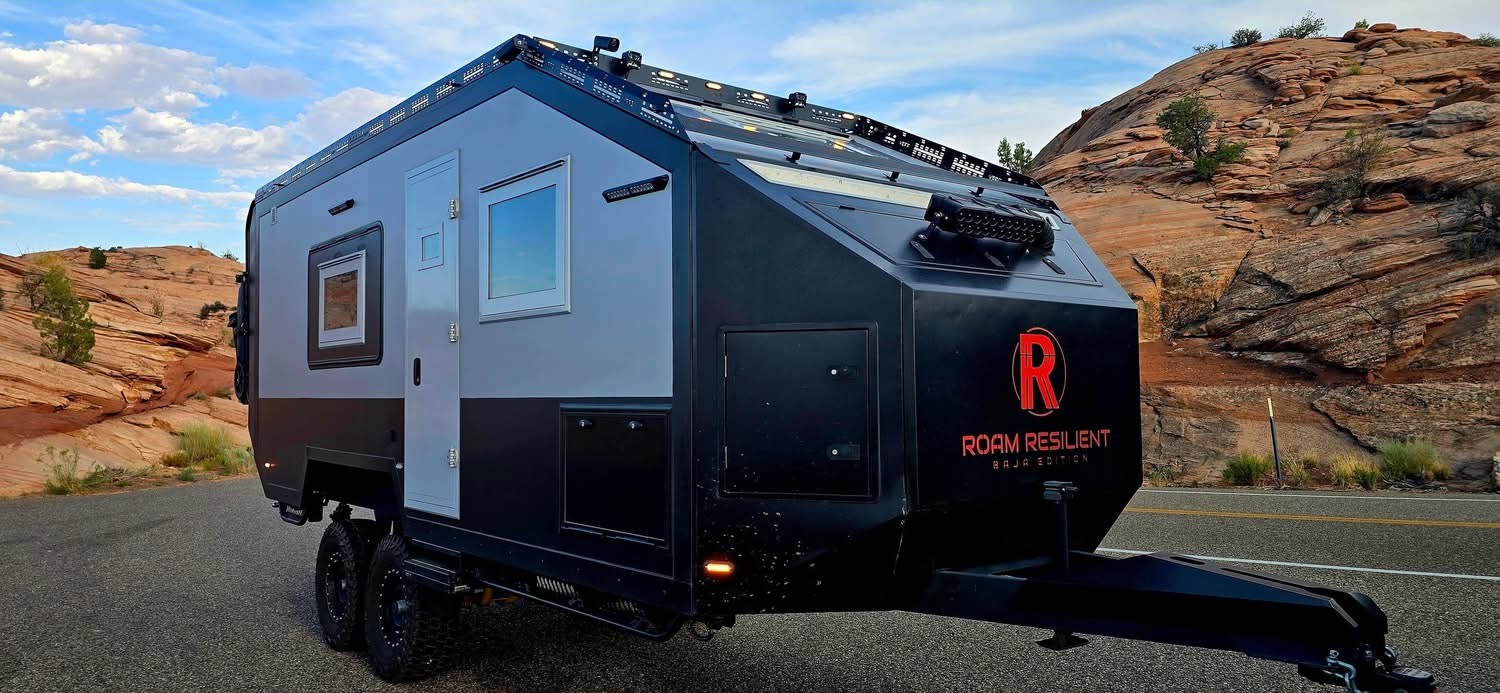

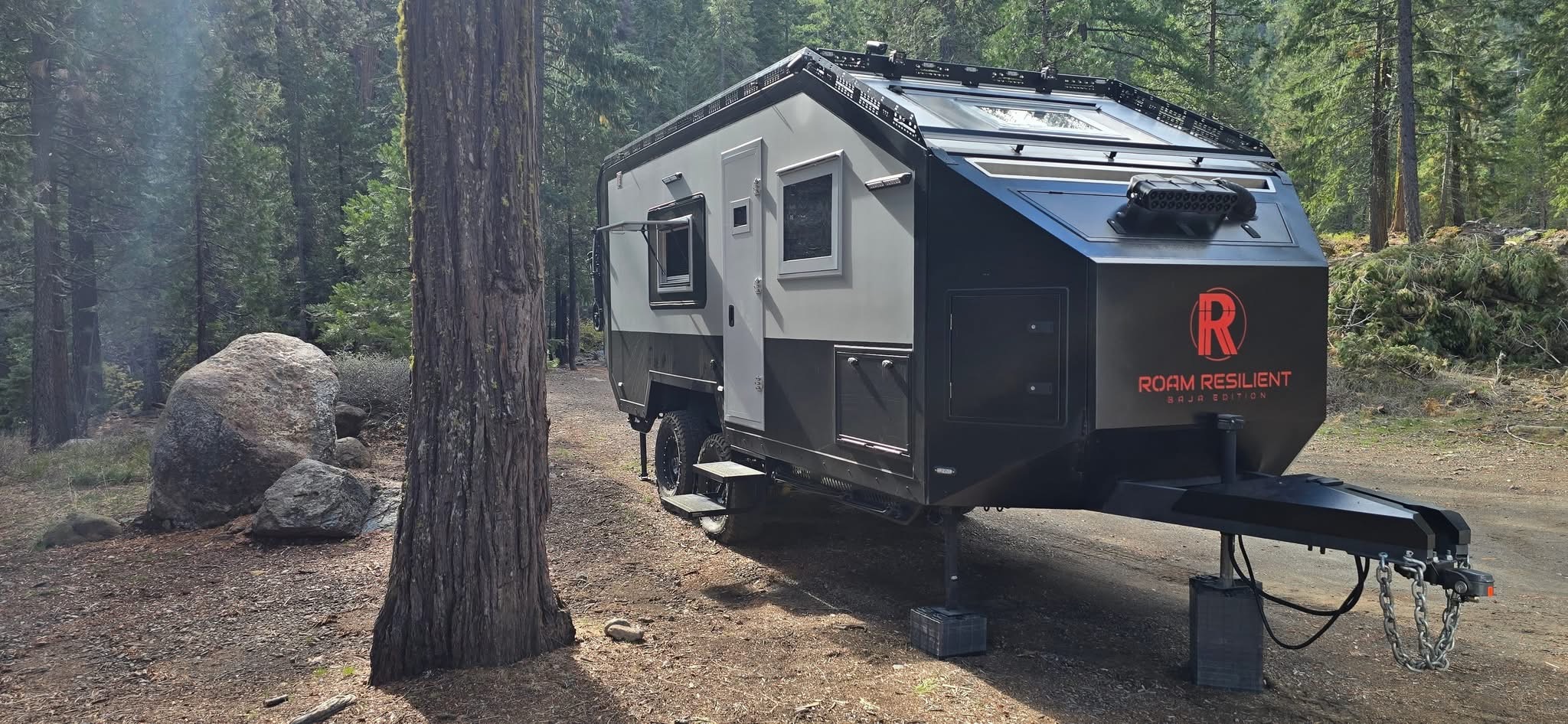

Baja Edition

Heavy Duty 13,000+ lbs rated in-house engineered RREV Independent Suspension Swing Arm (ISA) suspension.

• —Built with HD DOM Tubing
• —Buckling Load Rating of 18,550 N
• —4,300+ lbs Load Capacity per Arm

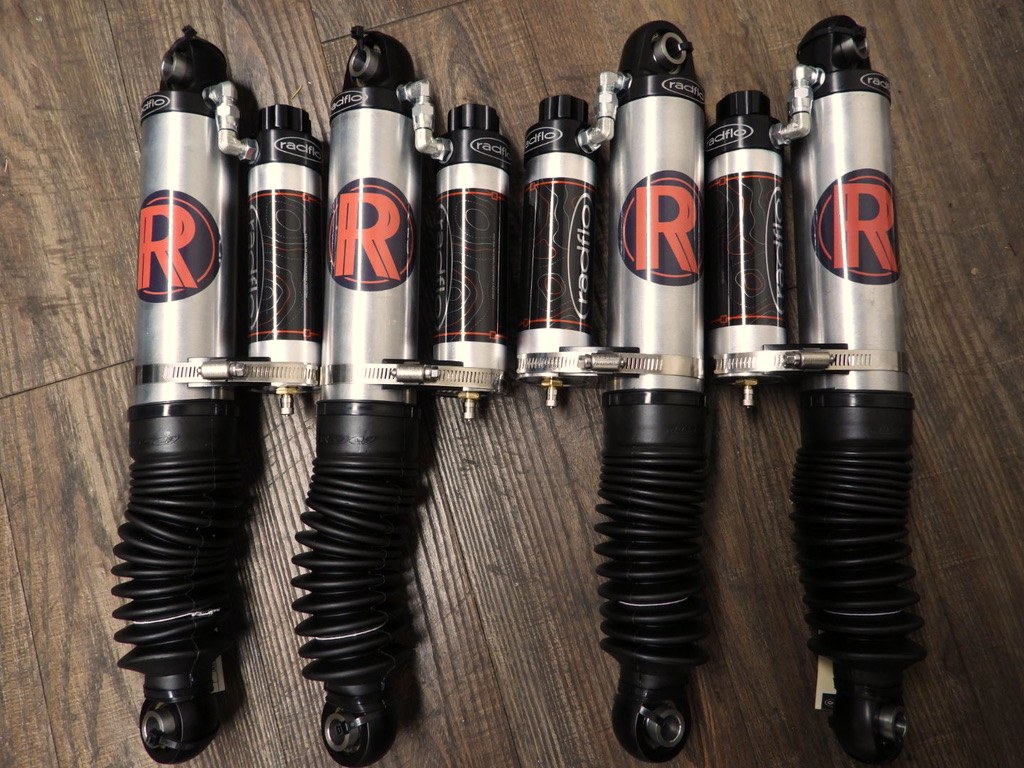

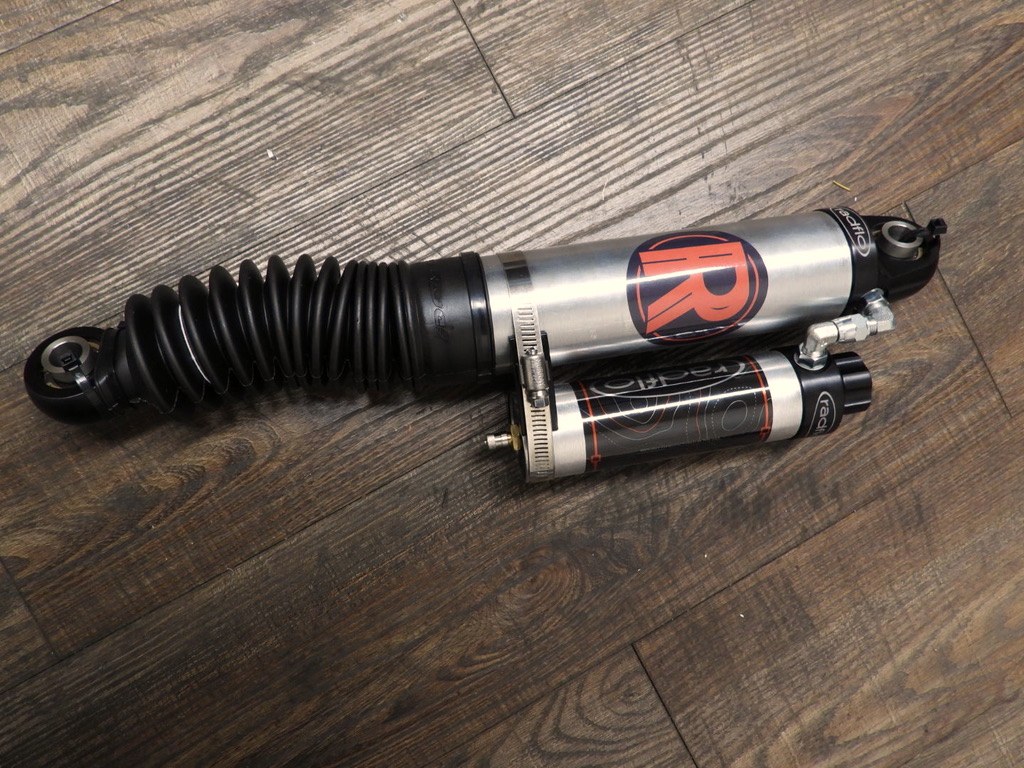

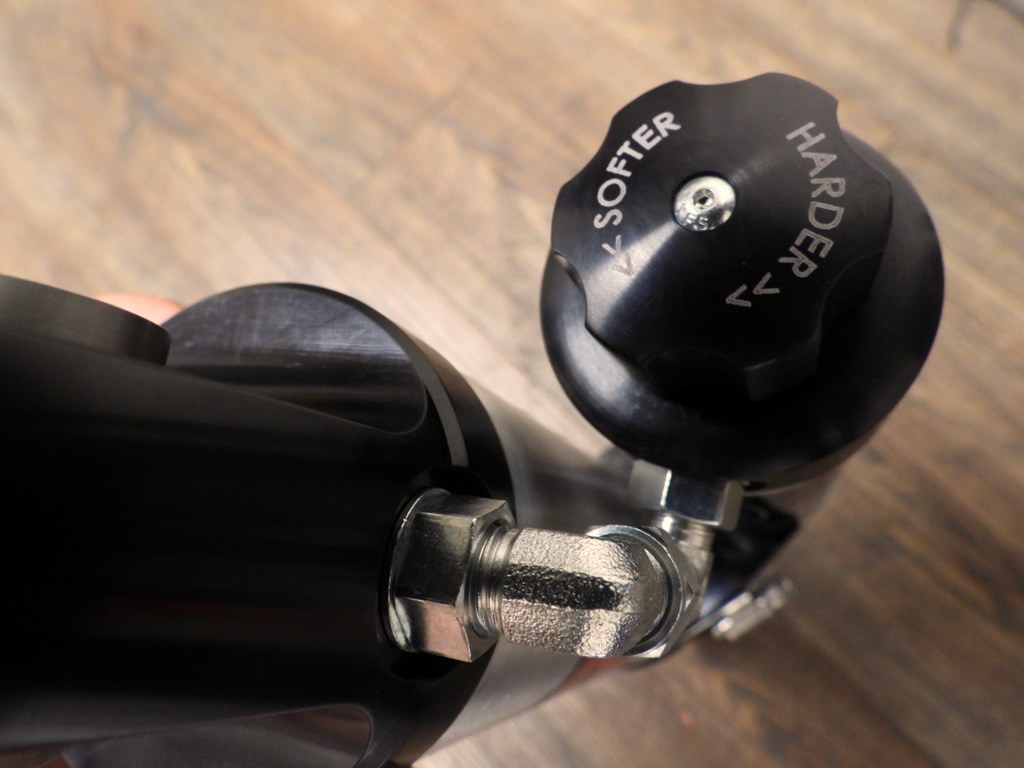

• —4 Air Springs with aluminum base, inbuilt bump stops and Fox Shocks with remote reservoir
• —Bluetooth Low Energy (BLE) air suspension controlled via app - independent control of all 4 wheels, great for off-roading and leveling
• —Airing up and down all springs at once
• —Independent control of front and rear 2 wheels - great for changing tires or running on a single axle
• —Up to 3 presets for freeway, off-road, hitching/unhitching
• —Load sharing and terrain-based full time auto leveling (optional)
• —24v ARB Twin Compressor
• —5x Solid A356 aluminum T6 heat treatment 16" Matte Black Method Wheels
• —5x 33" Mickey Thompson Boss Baja A/T Tires
• —Hydraulic Disc Brakes with 1,600 psi Hydrastar actuator
• —Oil bath hubs and bearings - little to zero maintenance
• —10,000 lbs rated webbed limit strap on each swing arm

Walls - 2.44" Thick | Floor & Roof - 3" Thick

• —Patent Pending 4 Layer GRP Panels reinforced with an additional 5th layer of aluminum skin with baked paint on the outside for durability and resistance
• —Aluminum extrusions all across and aluminum angle plates on the inside
• —9 Industrial grade high quality Polyamide thermal break molds to stop any thermal bridging

• —700 L Steel
• —Hot Dip Galvanized
• —Black Painted

• —Expedition door and windows made with aircraft grade aluminum with aluminum handles and weatherproof seals
• —2 expedition style Safari Hatches with built in windows - one over the bed and one at the dinette
• —7 windows all around to experience vistas from anywhere in the cabin
• —Expedition door with peek window and mesh screen
• —All windows come with high quality integrated blackout and mesh screen

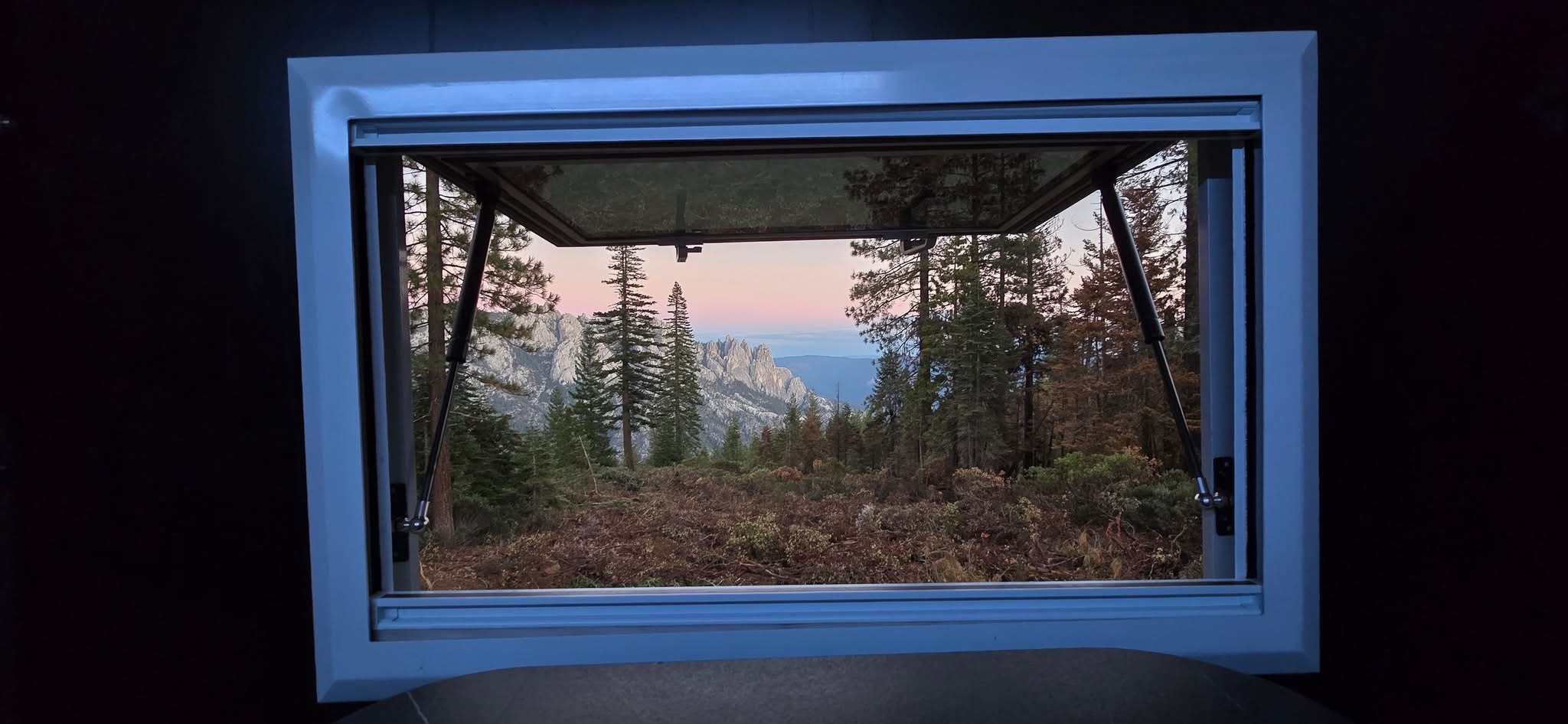

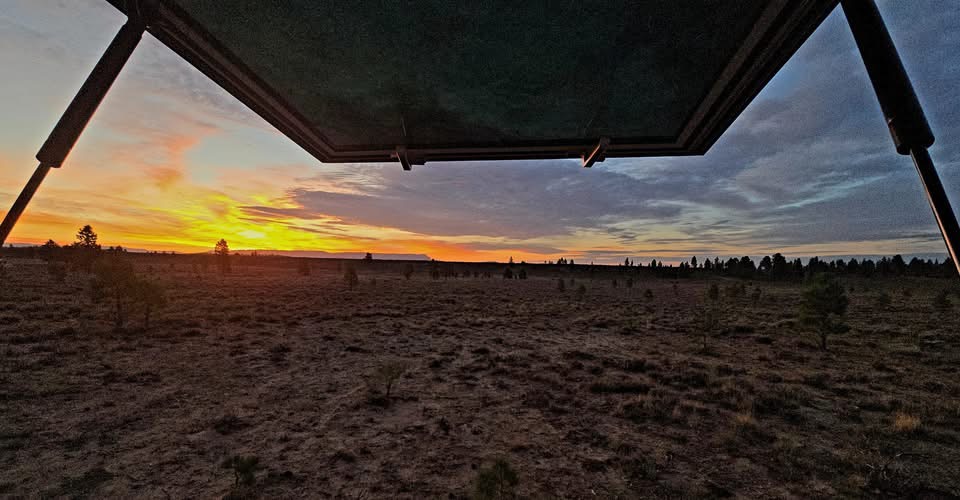

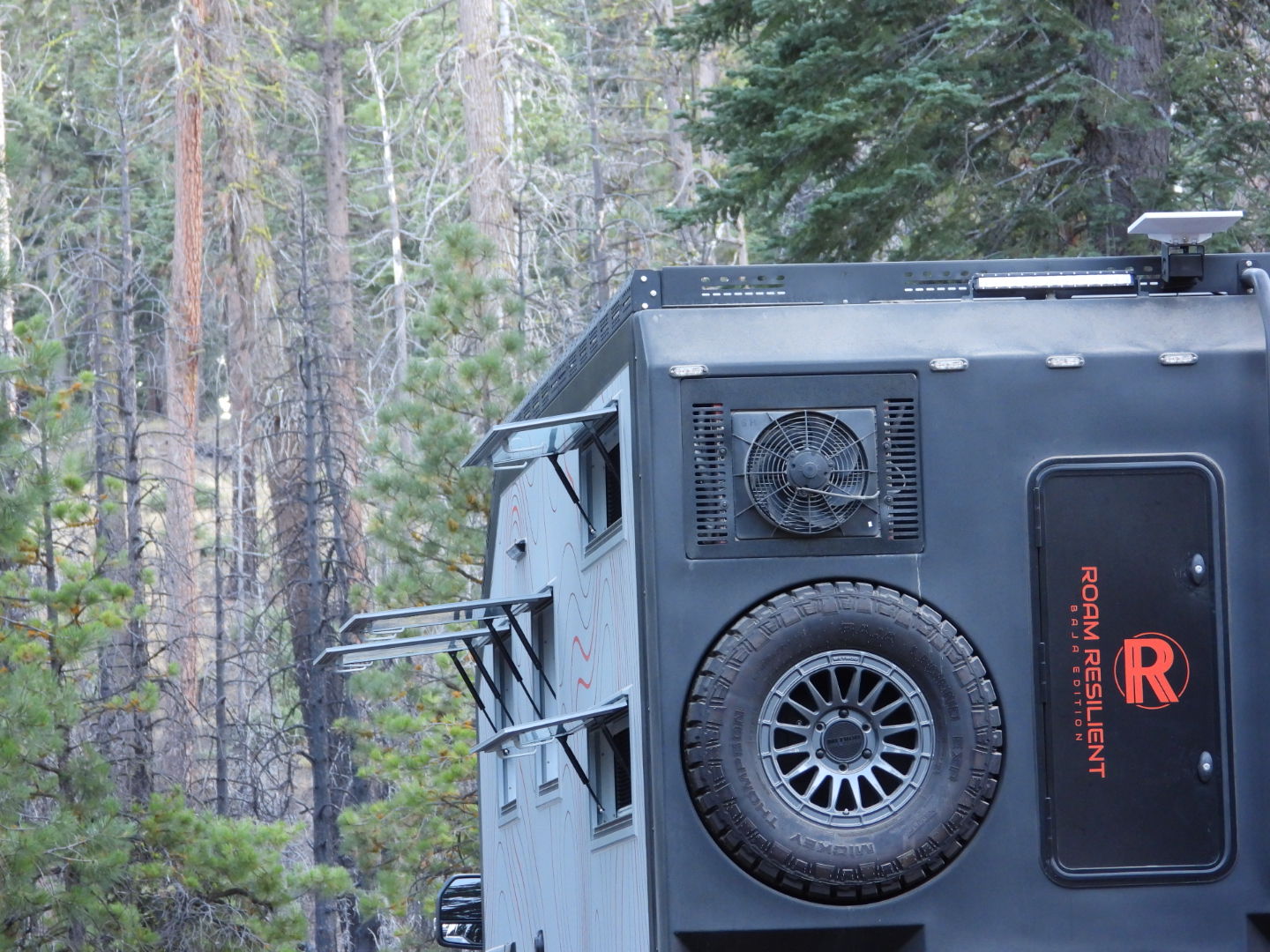

• —Heavy duty gas struts that allow 90 degree opening of the windows - can be open in rain and wind
• —Windows are integrated with rain fly to avoid water dripping inside when open on a rainy day

• —Sensor enabled HD staircase that opens upon opening the door - can be deployed and retracted from inside
• —Front and Rear Strands Siberia Light Bars
• —Twin Passenger and Driver side LED lights

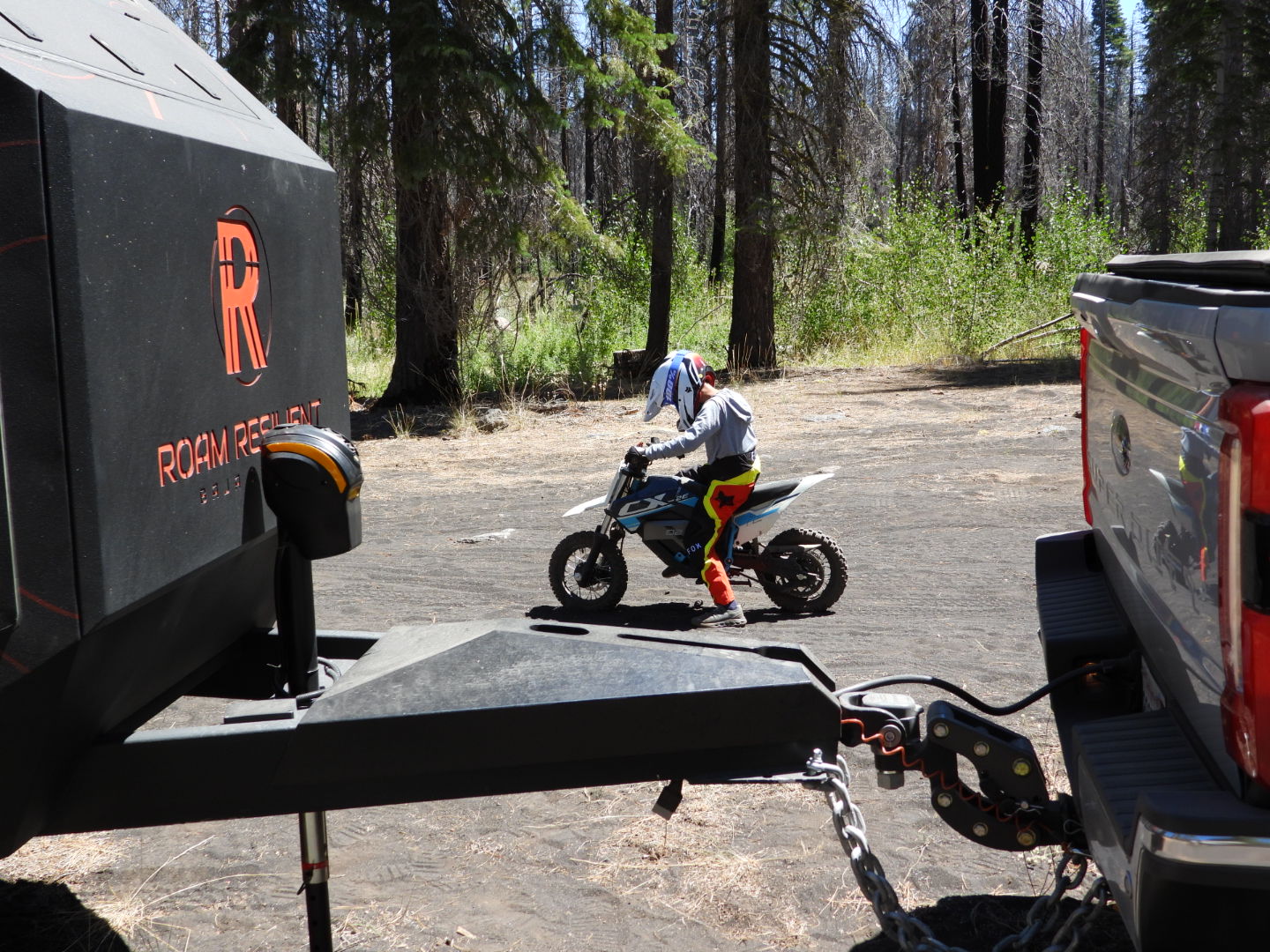

• —Cruisemaster DO45+ Hitch

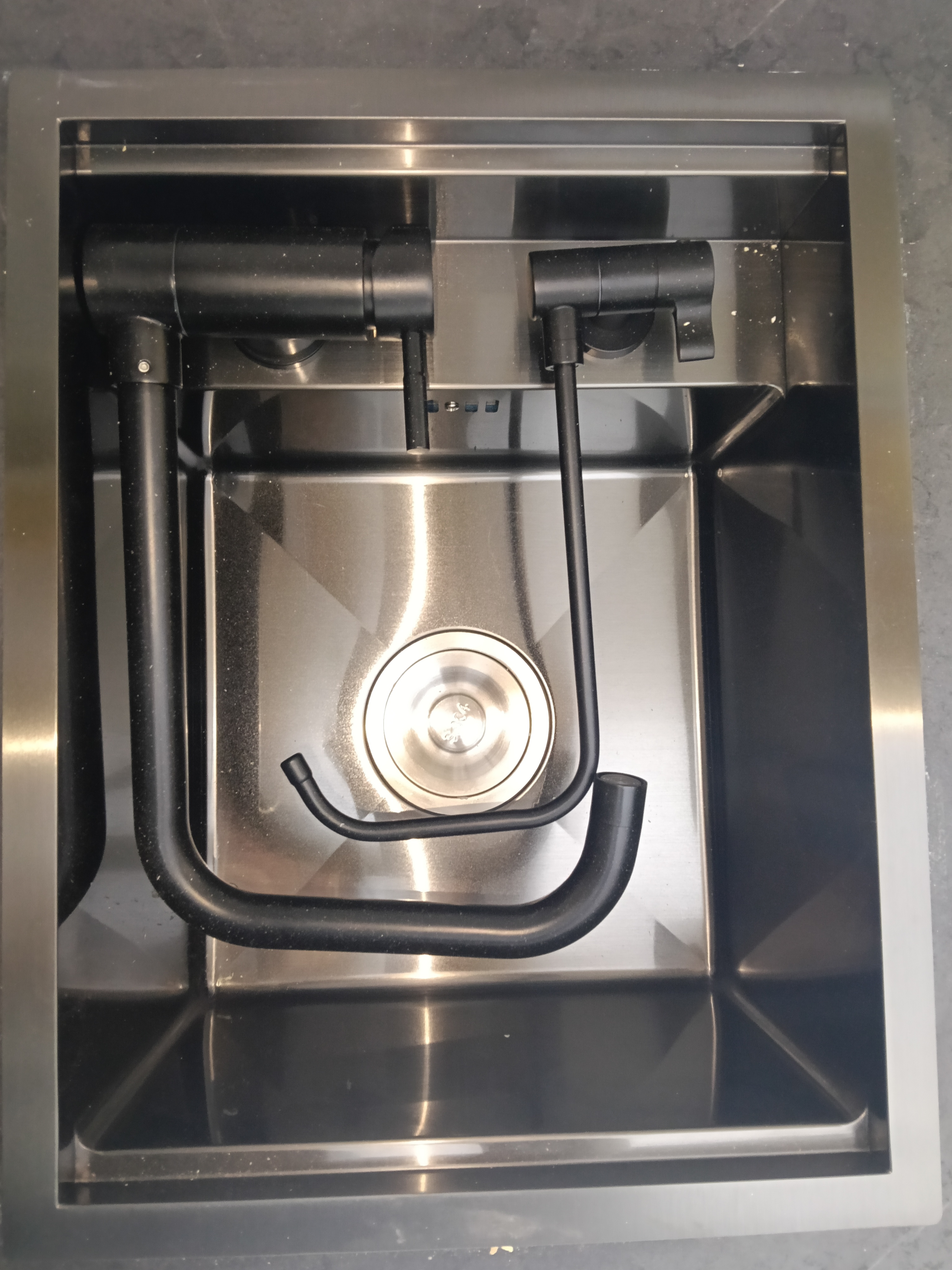

• —Sliding Outdoor Kitchen on the passenger side with two 120v AC outlets and water connection - features induction cooktop, prep area, sink, faucet and drain pipe
• —Front ~39" deep storage box with heavy duty locking large access door up front and 2 heavy duty locking access doors on sides
• —Front slope rain collection pipes on driver and passenger side
• —Heavy duty aluminum rock sliders (optional)

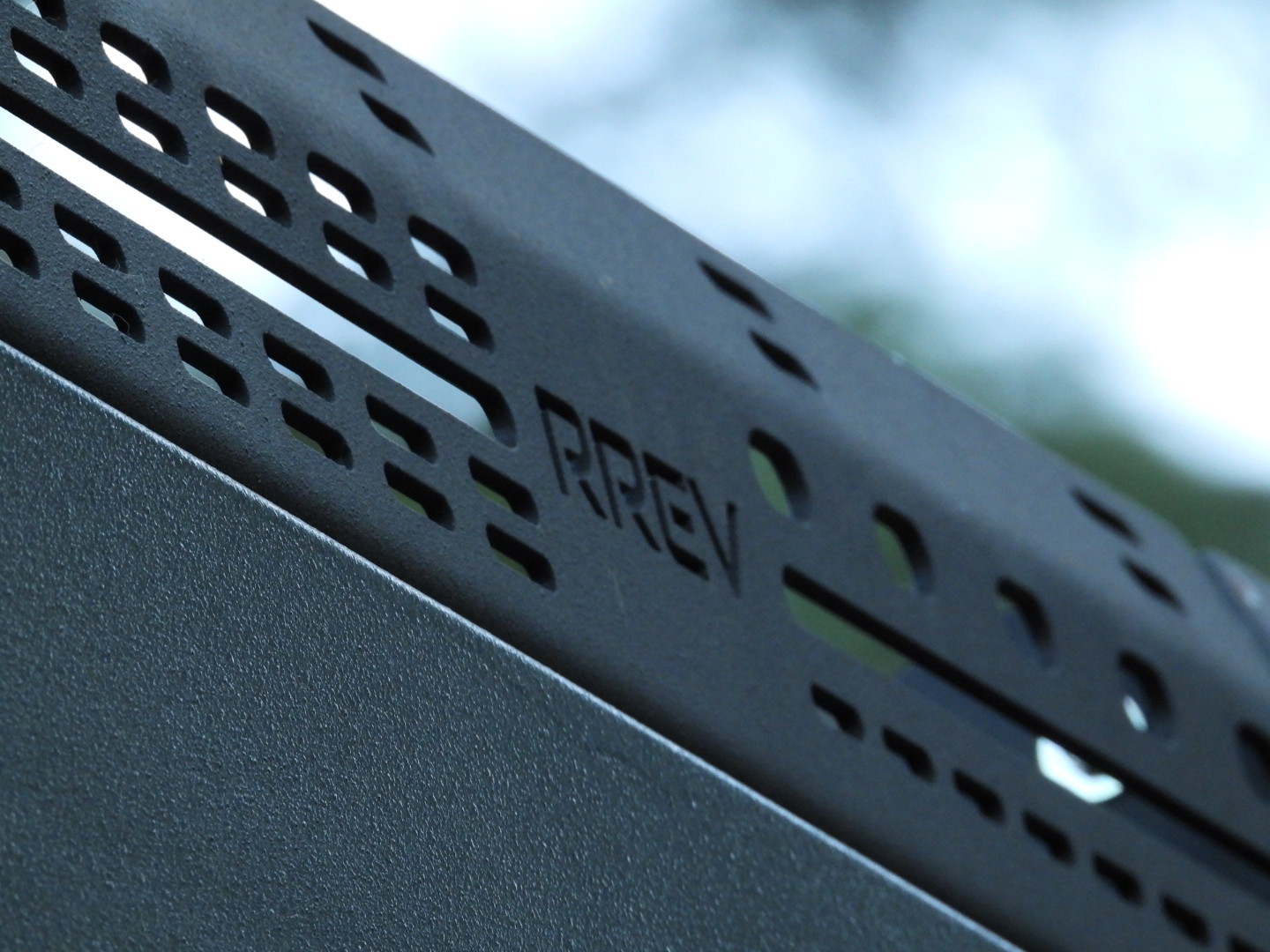

• —Aluminum top roof side rails
• —7,000 lb detachable swivel tongue jack

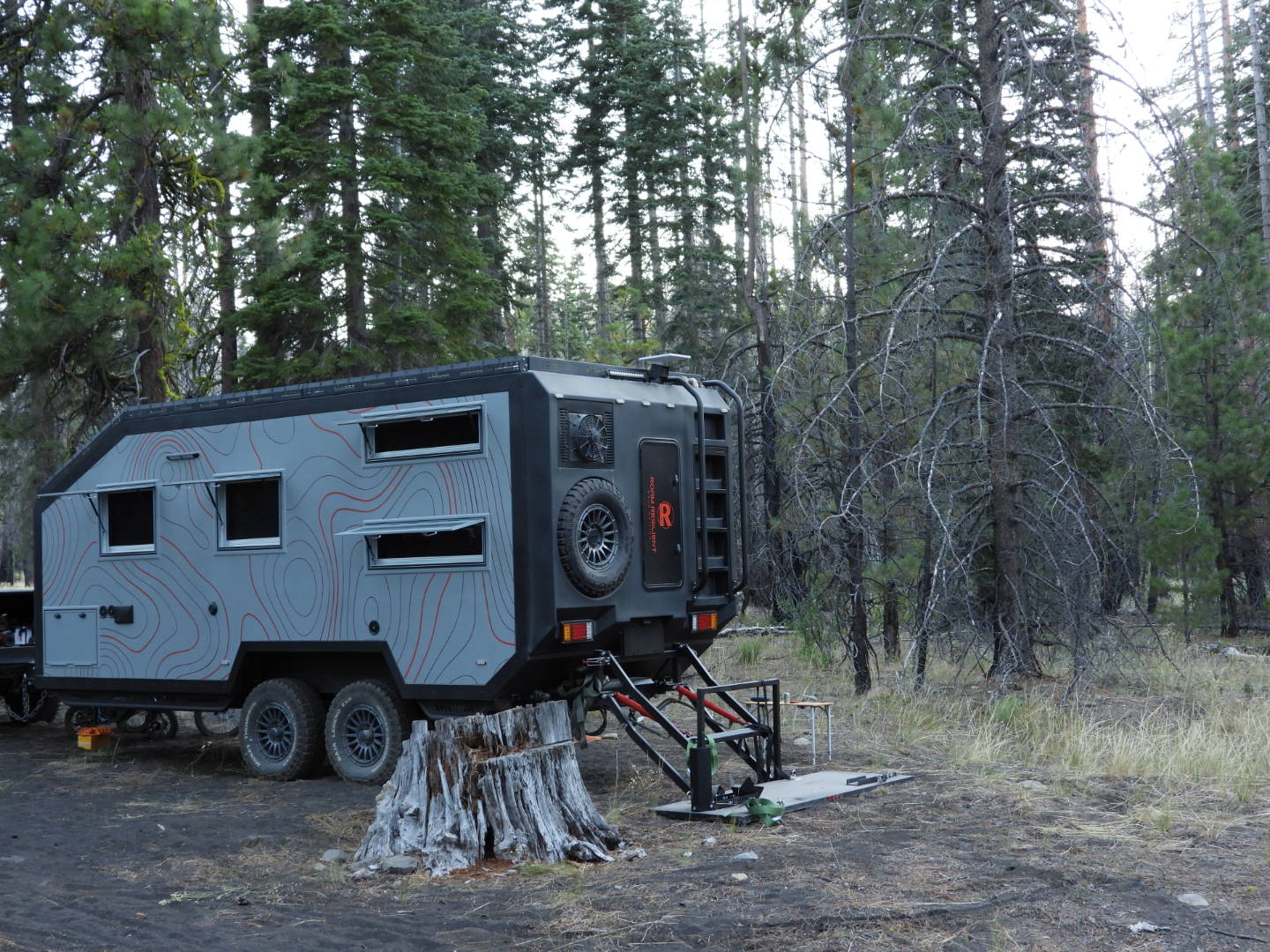

• —4 Corner Stabilizer Steadies

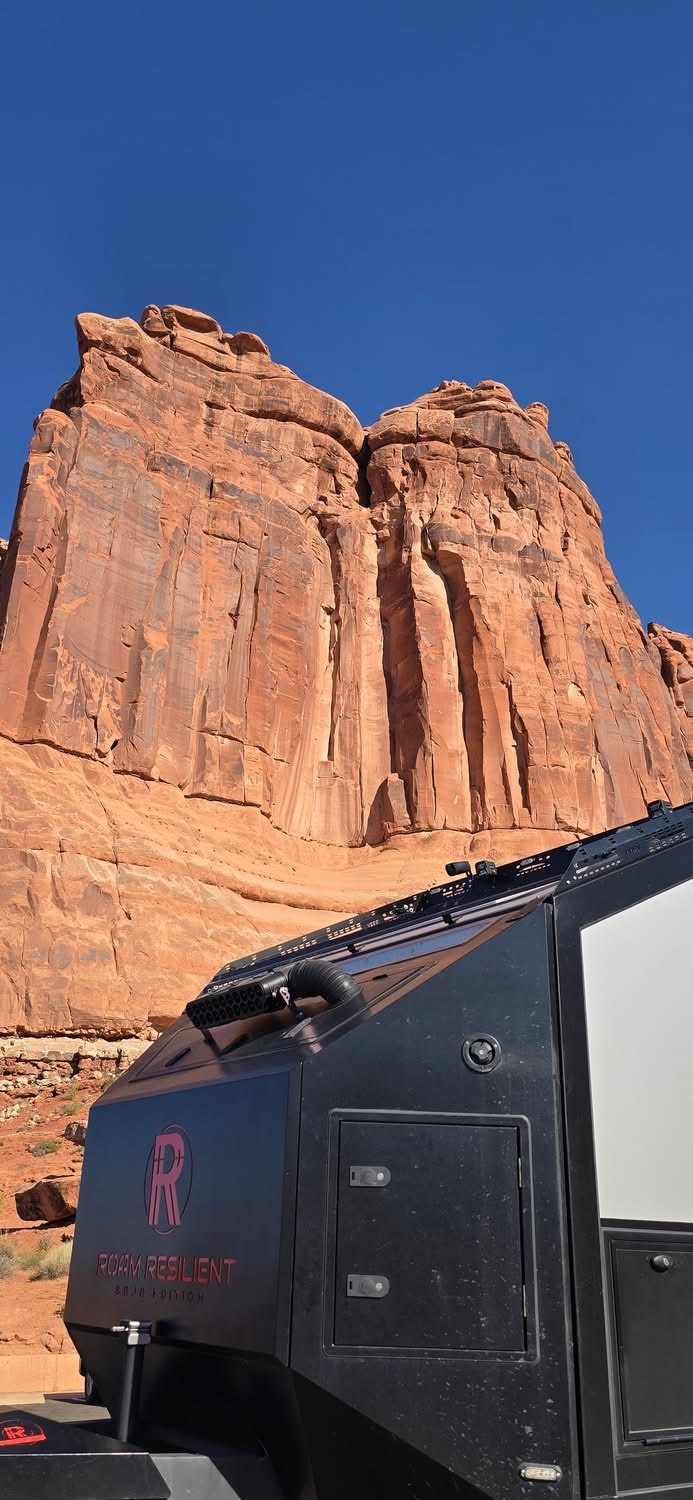

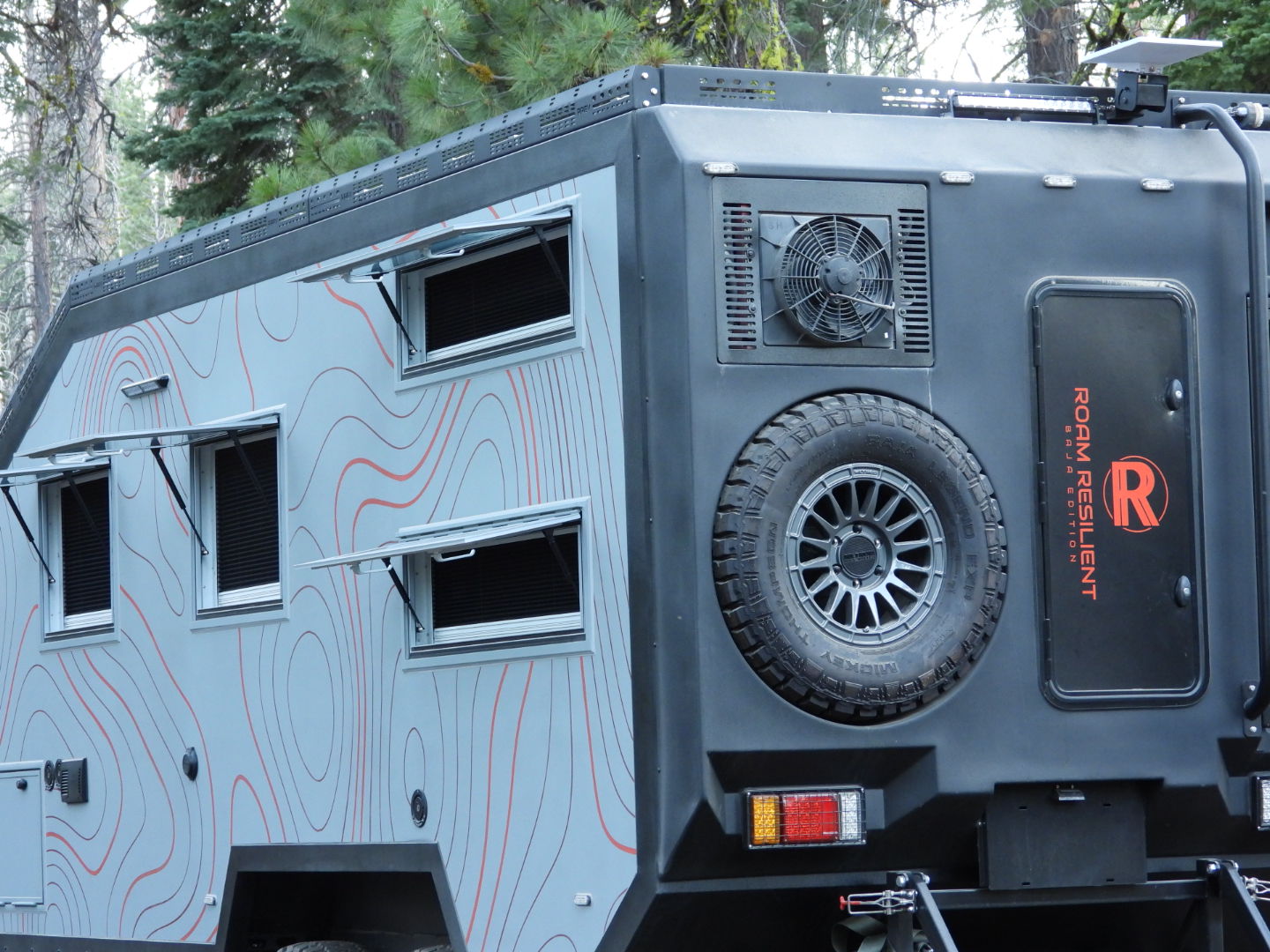

• —RREV's signature GRP custom molded rear cowling with integrated 24v DC AC Compressor Condenser, deployable ladder to the roof with rails, rear storage box with optional Molle Panel for gear, and 33" spare tire holder

• —230L DC fridge with 5 temperature settings and Night mode for quieter operation - anti-vibration and off-road ready locking mechanisms, Black color
• —Furrion 0.9 cu.ft. RV Microwave Oven (Optional)
• —Electric Oven (Optional): Chef Collection's built-in electric 120v oven - 2.0 cu.ft capacity, fan assist & broil function, triple layer glass door

RREV's proprietary HUB system integrating all energy systems - solar, shore and tow vehicle charging, battery bank, inverter, lighting, bathroom vent fan, steps and more.

• —24v 400AH Lithium Battery Bank featuring smart BMS integrated with RREV HUB system - upgradeable to 800AH
• —Samsung Android Touch Screen Control Panel (standard) - can option for Apple iPad
• —Three high quality 52v | 450W rigid solar panels wired in series for faster charging - upgradeable to 4x 450W
• —HUB integrated 2400W 24v Victron Energy MPPT Solar Charger
• —RREV HUB integrated 3000W 24v | 120V | 70 Amp Victron Energy Inverter Charger
• —RREV HUB integrated 50A DC-DC Charger with 50A Andersen plug at tongue ready to connect to tow vehicle
• —RREV HUB integrated 50A Andersen connection for additional portable solar charging
• —Multiple 120V outlets inside and outside the camper
• —12v/24v USB outlets with fast charging - 12v step down with busbar for additional 12v connections
• —Blue Sea Systems 30A AC MAIN with reverse polarity and 4 position distribution panel with First Defense Surge Protector prewired
• —Victron Energy 1000 Amp distributor with Mega Fuses and Bussmann Fuse Panel
• —RREV HUB app for web, Android and iOS with local access - secure remote access free for first year, then $65/yr

• —Custom 65 Gallon Stainless Steel General Water Tank with baffles, independent water pump and usage - marine style pickup tube for maximum water usage
• —Custom 16 Gallon Stainless Steel Buffer Tank with baffles, independent pump and usage - marine style pickup tube for maximum water usage
• —Custom 10 Gallon Stainless Steel Drinking Water Tank with baffles, independent pump and Acuva UV water filtration system
• —German engineered Truma Combi Diesel Water Heater
• —27 Gallon Gray Water Tank
• —All plumbing and tanks (except gray tank) are inside - no problems with extreme cold

• —iNet Ready Truma Combi Diesel Heater for air and water heating
• —Ducted heating with outlets - 3 under the bed towards the alley, 1 above the fridge and 1 in the bathroom

• —Custom made 24v DC | 11,000 BTU Air Conditioner
• —Automotive grade R134a cooling agent
• —Easy recharge when needed

• —-30F to 120F

• —Dry Weight: ~5,952 lbs
• —Tongue Weight: ~595 lbs (adjustable with air suspension)
• —GVWR: 8,500 lbs
• —Suspension: 13,000 lbs

• —Track Width: 72"
• —18.5ft Box | 24ft Long | 7.3ft Wide
• —Height is adjustable (Air suspension)

• —5 People
• —Queen Size Bed
• —Two Bunks
• —Convertible Couch/Sofa to Bed (couch is optional)

• —Outside - Driver side access cabinet with heavy duty weatherproof locking door
• —Outside - Massive front storage box with 3 heavy duty weatherproof locking doors
• —Kitchen: 4 overhead cabinets, 1 large storage cabinet (when oven is not optioned), 3 sliding drawers, under sink and near floor storage with access doors
• —Bed: 4 overhead cabinets, 2 side closets, 2 bedside lift door cabinets, 1 bottom drawer, 2 bedside pockets, large under-bed storage with hatch
• —Dinette: 3 overhead cabinets, 2 under-dinette near floor drawers
• —Bathroom: 3 overhead cabinets, 2 top shelves, 3 under-countertop shelves, 1 drawer and 2 storage spaces with doors
• —All doors locked with aluminum locking handles for on and off-road stowing

• —Standard Thetford 220 Series Cassette Toilet
• —OGO Composting Toilet (Optional)
• —Tiny Separett (Optional)
• —Incinerator Toilet (Optional)

• —Cruisemaster DO45+ Hitch with 360 degrees of articulation
• —10,000 lbs rated and ADR Compliant

• —15 years frame
• —2 years craftsmanship
• —Applicable appliance manufacturers warranty for all equipment
