Outland Edition
The small, bad basecamp.
- Deposit
- $20,000
- Build time
- 9–10 months
- Est. delivery
- Aug 2027
Next you choose your options on rrev.shop and see your full price and your payment schedule, with every date. Your deposit locks your build slot; RREV sends you a secure payment link.
Continue to the configuratorFloor plan, cut open
Outland Edition · Motorized king lift bed + sofa lounge · Front: toilet + vanity; separate shower
RREV Outland Edition · 1:20 · 06/25/26
Inside 196.1 × 82.3 in, measured from the model · drag to orbit
- Toilet · vanity42.4 × 13.4 in
- Toilet and vanity side by side in the nose, 19.7 + 22.7 in, 13.4 in deep.

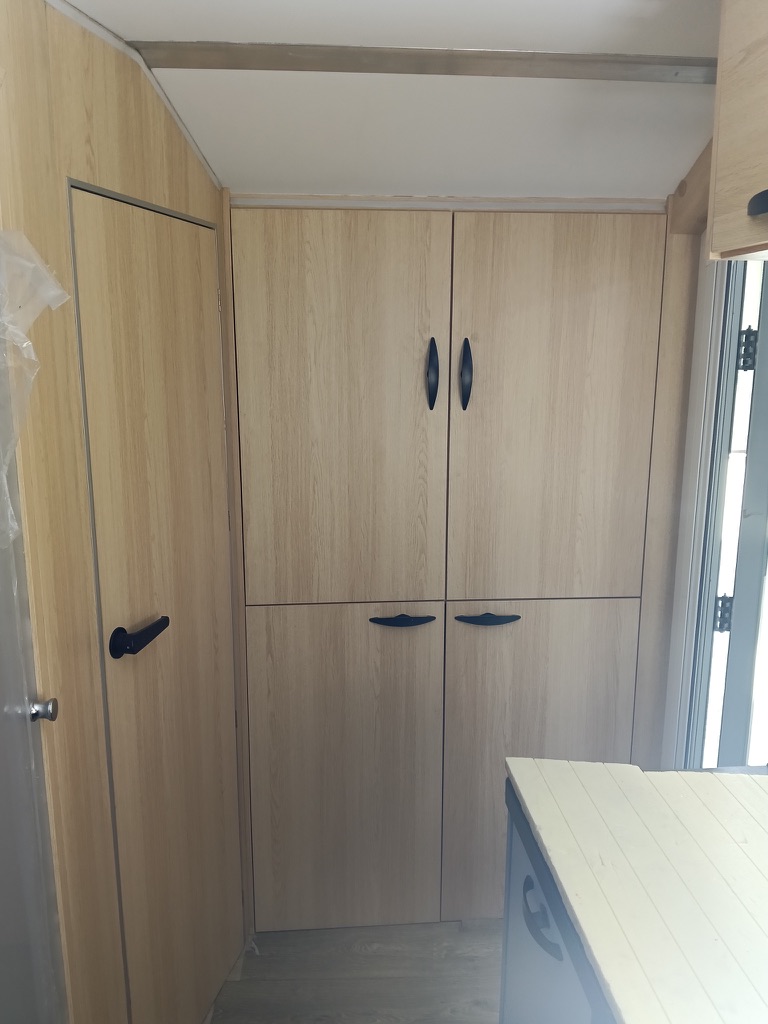

- Closet19.5 × 38.2 in
- Divided closet, the top half free and the bottom half the electrical bay.
- Shower32.1 × 33.3 in
- Walk-in shower on the road side.

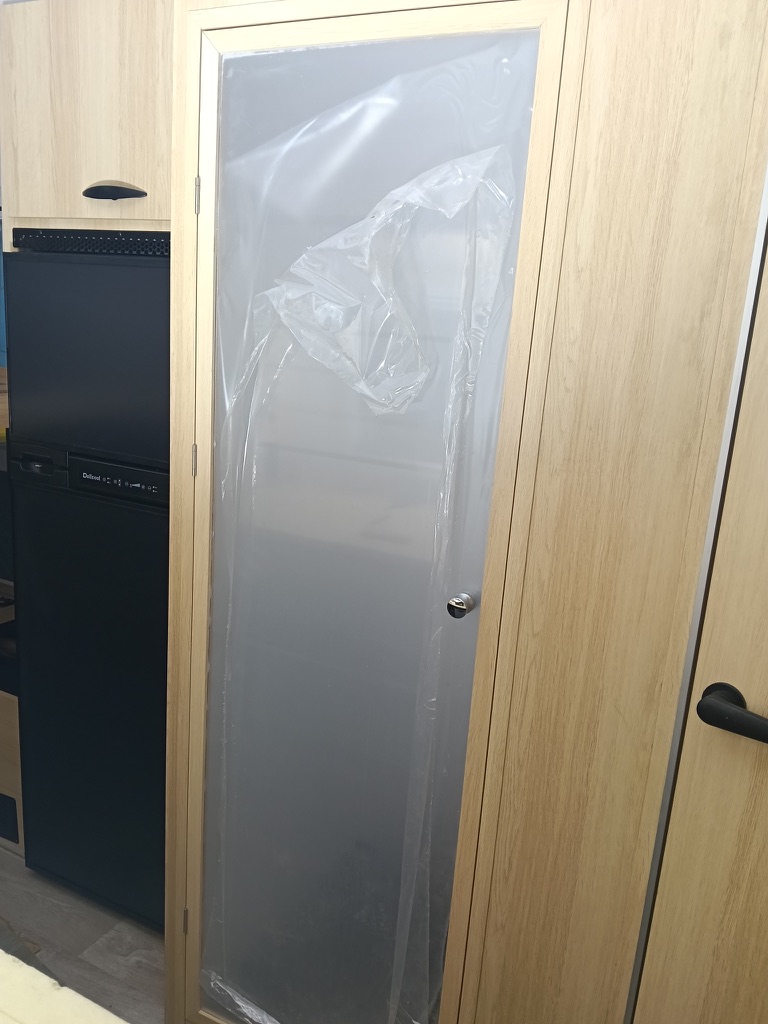

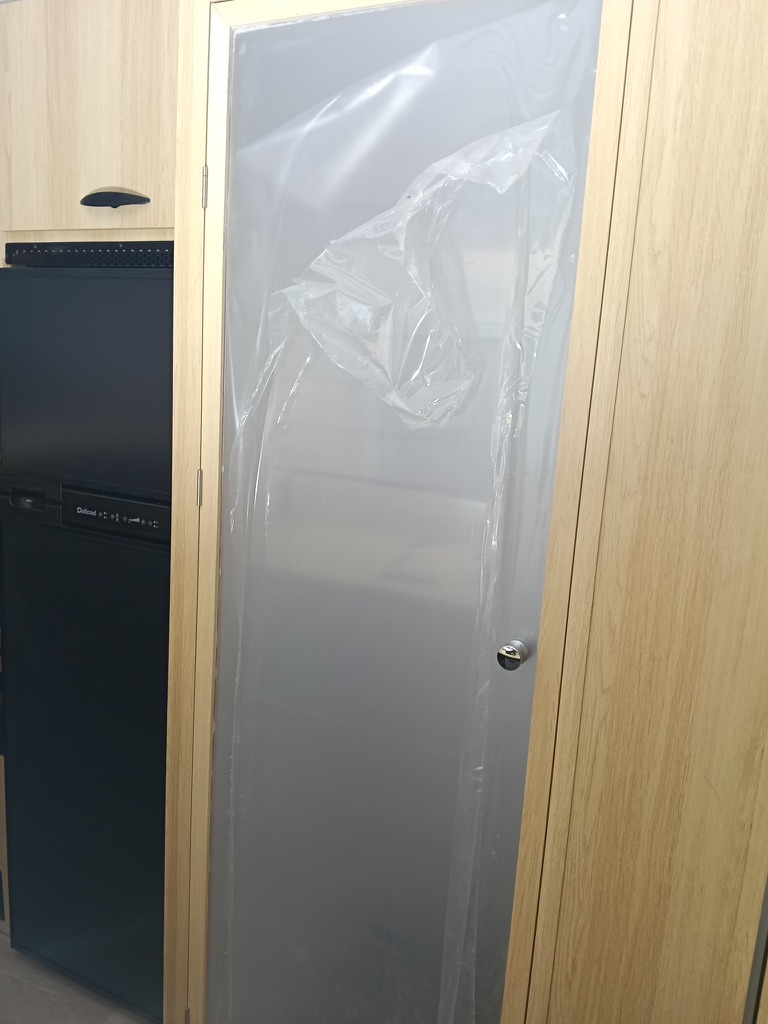

- Fridge26.7 × 23.3 in
- Fridge, 26.8 in wide, with storage over it if no microwave is fitted.
- Galley51.8 × 21.0 in

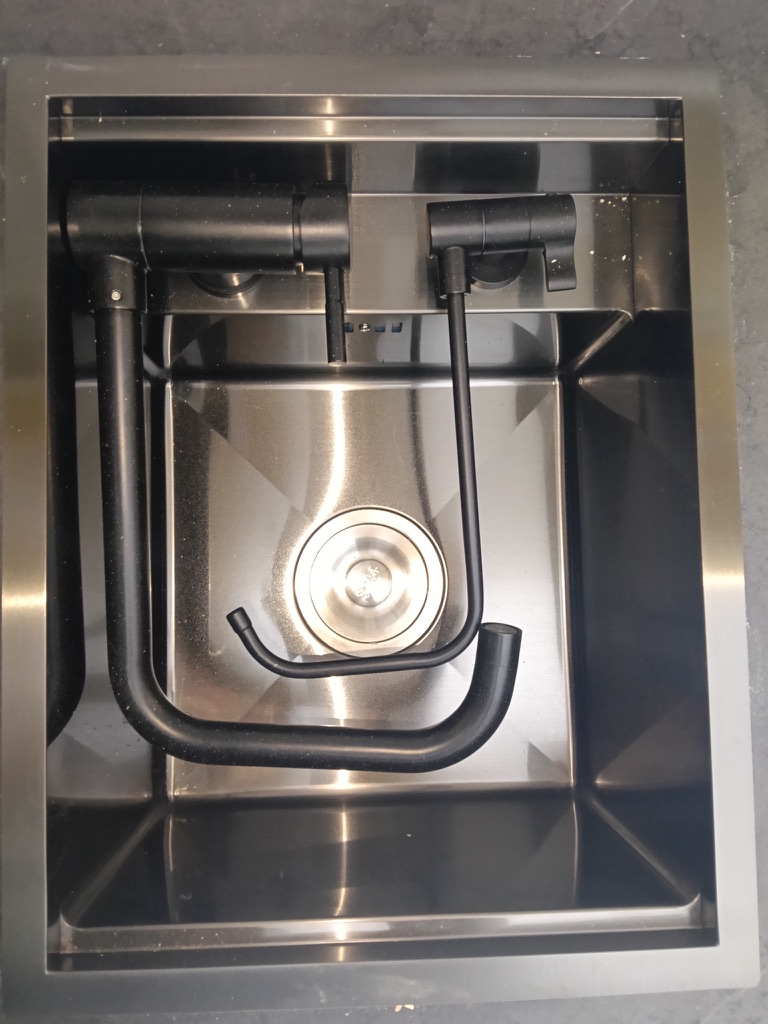

- Kitchen counter with induction and sink over 51.8 in of under-counter storage: 16.1 + 13.3 + 14.5 in cabinetry.
- Sofa78.5 × 19.5 in
- Sofa, 19.5 in deep, with storage underneath.
- Table78.5 × 35.4 in
- Table between the sofas; 35.4 in between the sofa fronts.
- Sofa78.5 × 19.5 in
- Sofa, 19.5 in deep. Pumps, diesel heater and accessories live under this end.
- Outdoor kitchen25.6 × 4.0 in
- Slide-out outdoor kitchen under the lounge, 25.6 in; then 52 in of under-sofa storage.

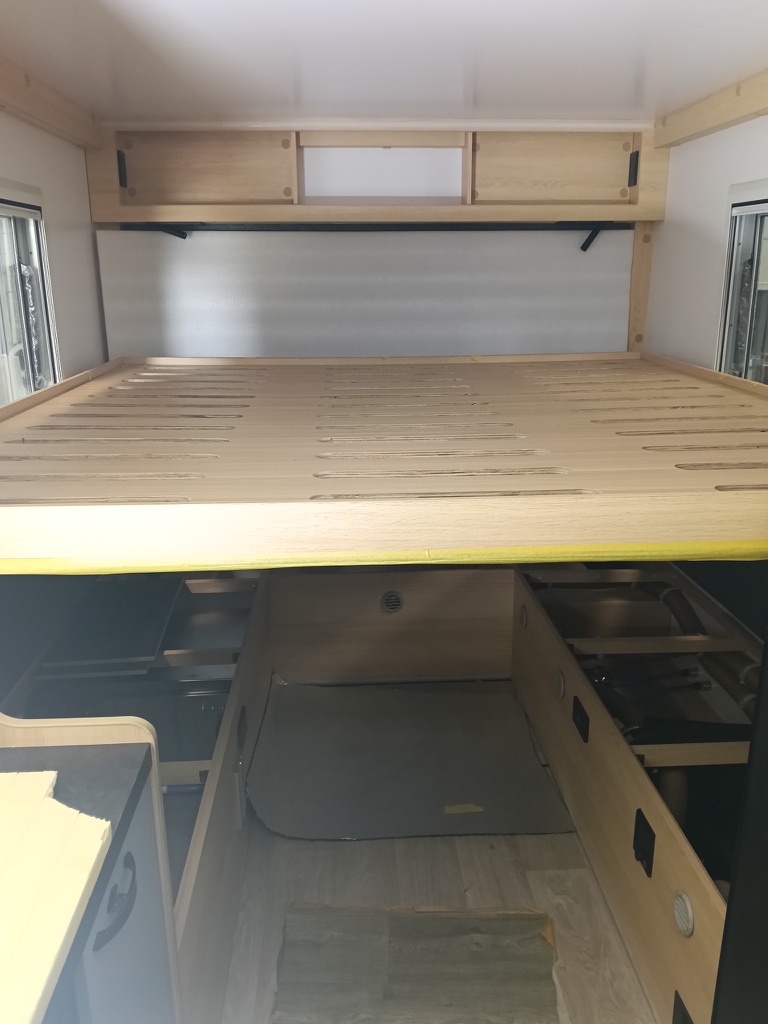

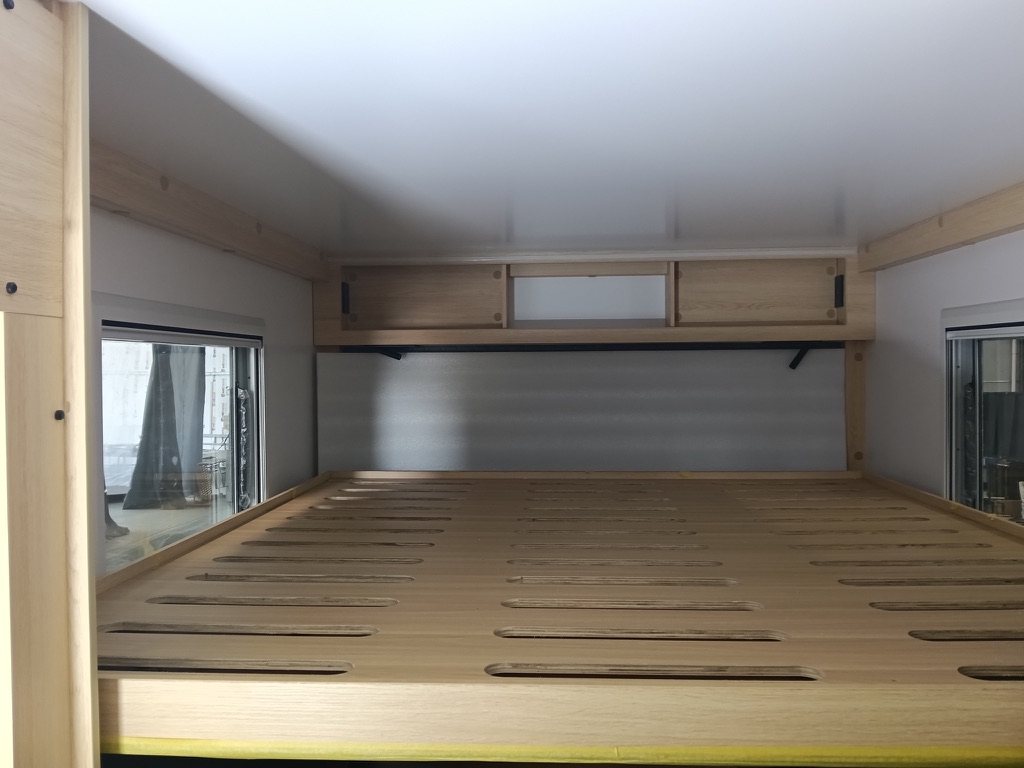

- Lift bed76.0 × 80.0 in
- Motorized king bed above the lounge, shown raised; it lowers over the sofas and table at night.
Scroll to take it apart.
All 1,116 CAD bodies of the Outland Edition, in the order they come apart: details, roof, walls, interior, wheels, suspension, floor, frame.
1,116 parts. One rig.
Every part of the Outland Edition, all 1,116 CAD bodies, coming together in real build order: frame and floor, suspension and wheels, interior, walls, roof. Then the real one.
Outland Edition — Order data · Rev A
Load it up.
Add water and gear and see how much room the Outland Edition has left under its GVWR.
Room for 2,108 lb more before the rig reaches its GVWR.
Configure yours- Motorized bed lift system
- Maximized square footage
- Tight terrain capable
- Smart storage throughout
- Lightweight and agile build
- Perfect for quick escapes and off-grid weekends
Single - Standard | Tandem - Optional. Heavy Duty 9,000+ lbs rated in-house engineered RREV Independent Suspension Swing Arm (ISA) suspension (Standard). 13,000 lbs rated for tandem.
- Built with HD DOM Tubing
- Buckling Load Rating of 18,550 N
- 4,300+ lbs Load Capacity per Arm
- Air Springs with aluminum base, inbuilt bump stops and RREV custom tuned shocks - Radflo + RREV custom shocks with adjuster optional
- Air suspension run by RREV OS through the Cockpit modules - independent left/right control, great for off-roading and leveling
- Airing up and down all springs at once
- Up to 3 presets for freeway, off-road, hitching/unhitching
- Load sharing and terrain-based full time auto leveling (optional)
- 24v ARB Twin Compressor (12v Brushless Twin Optional)
- 3x Solid A356 aluminum T6 heat treatment 16" Matte Black Method Wheels
- 3x 33" Mickey Thompson Boss Baja A/T Tires
- Hydraulic Disc Brakes actuator
- Oil bath hubs and bearings - little to zero maintenance
- 10,000 lbs rated webbed limit strap on each swing arm
- Patent Pending 4 Layer GRP Panels reinforced with 5th layer of aluminum skin with baked paint for durability and resistance
- Aluminum extrusions all across and aluminum angle on the inside
- 9 Industrial grade Polyamide thermal break molds to stop any thermal bridging
- Lightweight 700L Steel
- Hot Dip Galvanized
- Black Paint

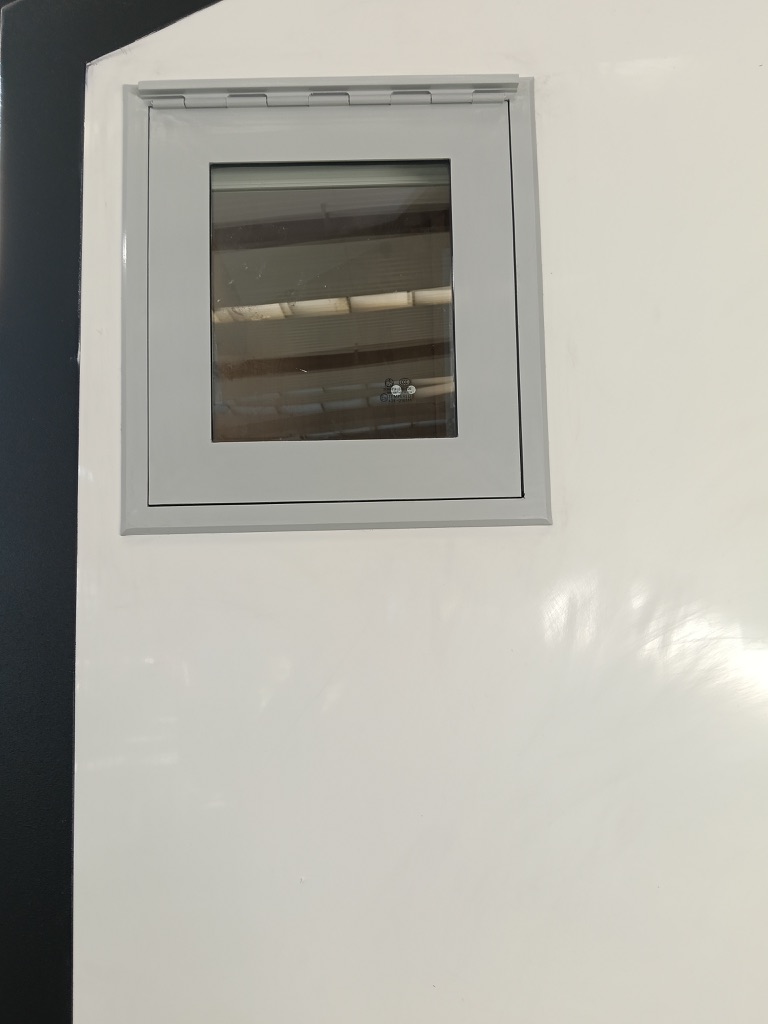

- Expedition door and windows made with aircraft grade aluminum with aluminum handles and weatherproof seals
- Expedition door with peek window and mesh screen
- All windows come with high quality integrated blackout and mesh screen
- Heavy duty gas struts that allow 90 degree opening - can be open in rain and wind
- Motorized 2 step staircase
- Front and Rear Strands Siberia Light Bars
- Twin Passenger and Driver side LED lights
- Cruisemaster DO45 Hitch
- RREV signature GRP custom molded rear cowling with integrated 24v DC AC Compressor Condenser, deployable ladder to the roof with rails, rear storage box with optional Molle Panel, and 33" spare tire holder
- 9,000 lbs rear winch (Optional)
- Rear recovery points with 11,000 lbs rated bars and fully forged 9 Ton WLL shackles
- 230L DC fridge with 5 temperature settings and Night mode - anti-vibration and off-road ready locking mechanisms, Black color
- Furrion 0.9 cu.ft. RV Microwave Oven (Optional)
- Twin burner induction cooktop with full glass touch screen, 9 temperature settings, safe cooking feature
- Optional Microwave/Air Fryer Inbuilt
In-house engineered HUB — the RREV-built energy and control system, and the brain of the whole rig. It runs energy (solar, shore and tow-vehicle charging, battery bank, inverter), air suspension, awning, lighting, vent fans, steps and more, from one system rather than a stack of third-party boxes.
- 24v 280AH Lithium Battery Bank with smart BMS integrated with RREV OS - upgradeable to 560AH
- Samsung Android Touch Screen Control Panel (standard) - can option for Apple iPad
- Two high quality 52v | 400W rigid solar panels wired in series
- HUB integrated 24v Victron Energy MPPT Solar Charger
- RREV OS integrated 2000W 24v | 120V | 30 Amp Victron Energy Inverter Charger
- RREV OS integrated 50A DC-DC Charger with 50A Andersen plug at tongue
- Multiple 120V outlets inside and outside the camper
- 12v/24v USB outlets with fast charging - 12v step down with busbar for additional 12v connections
- Custom RREV Distribution Panel with micro-chip breakers
- RREV OS app for web, Android and iOS - Remote Access + Spotty free for the first year, then a yearly plan (current rate on the RREV OS page)
- 50 gallon freshwater tank plus a separate drinking-water tank (65 gallons total), pressurized system, optional filtration kit
- 26 Gallon Gray Tank
- No Black tank
- iNet Ready Truma Combi Diesel Heater for air and water heating
- Ducted heating with outlets towards the alley and in the bathroom
- Custom made 24v DC | 11,000 BTU Air Conditioner
- Automotive grade R134a cooling agent for easy recharge if and when needed
- -20F to 120F
- Dry Weight: ~4,000 lbs (Single) | +420 lbs (Tandem)
- Tongue Weight: ~395 lbs (adjustable on the tandem)
- GVWR: 6,000 lbs (Single) | +1,200 lbs (Tandem)
- Suspension: 9,000 lbs (Single) | 13,000 lbs (Tandem)
- Track Width: ~72"
- Box Space 15.5ft | Overall Length 20.1ft
- Height is adjustable (Air suspension)
- 2-3 People
- King Size Bed
- Convertible Living/Bed

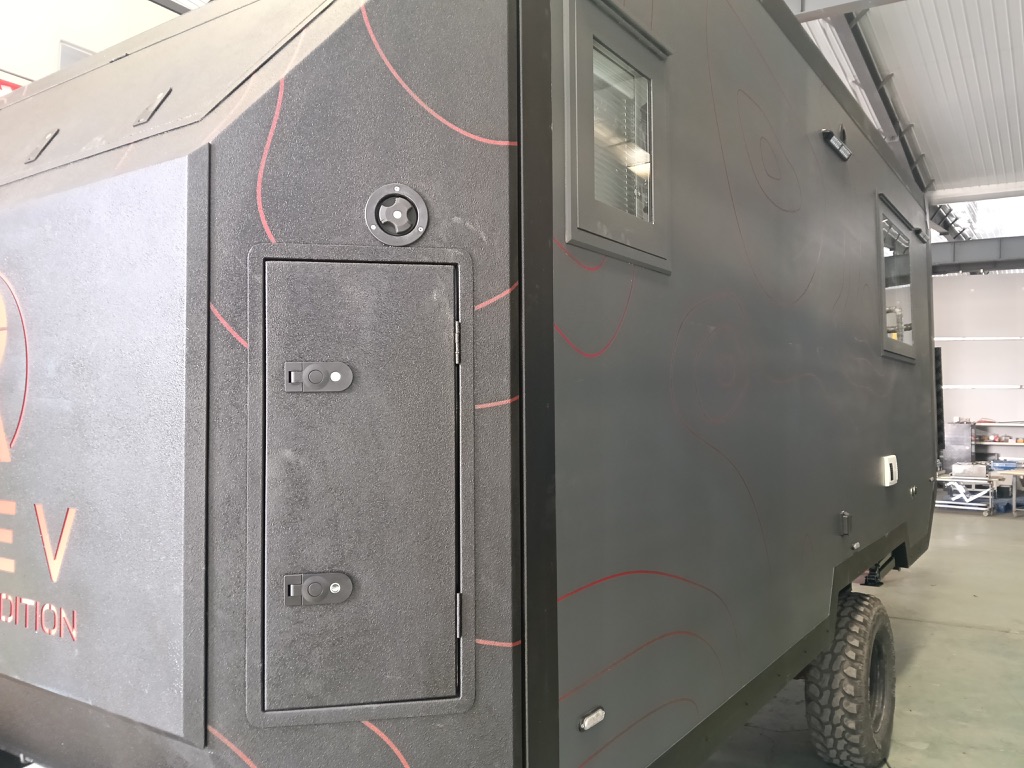

- Outside - Driver side access cabinet with heavy duty weatherproof locking door
- Kitchen: Overhead cabinets, 1 large storage cabinet (when oven not optioned), sliding drawers, under sink and near floor storage
- Bathroom: 3 overhead cabinets, 2 top shelves, 3 under-countertop shelves, 1 drawer and 2 storage spaces with doors
- All doors locked with aluminum locking handles for on and off-road stowing
- OGO Composting Toilet (Optional)
- Tiny Separett (Optional)
- Incinerator Toilet (Optional)
- 2-Fold Outdoor Kitchen (Optional) — stainless steel, mounted on HD slider
- Single-burner induction cooktop
- Hot and cold water connections
- Cruisemaster DO45 Hitch with 360 degrees of articulation
- 15 years frame
- 2 years craftsmanship (Regular Recreational Use Only; not applicable to full-time living)
- Applicable appliance manufacturers warranty for all equipment
- 9-10 months
Every Outland Edition is custom-configured to your mission. Options, add-ons, and bespoke builds available. Speak with our team to discuss your requirements.
Speak with our teamMake it yours
What the technology packs do, and RREV OS itself: RREV OS & Packs.
Exterior Color · pick one
- Armor Paint Finish+$5,000
White · Light Gray · Basalt Gray · Beige · Light Brown · Blue · Green · Olive Green · Orange · Flame Red
Axle Configuration · pick one
- Tandem Axle+$5,000
Shock Absorbers · pick one
- Custom RREV-RADFLO 2.5 with Adjuster (Single Axle)+$2,250
- Custom RREV-RADFLO 2.5 with Adjuster (Tandem)+$4,500
Optional upgrade for standard swing arms.
Suspension Add-ons
- ARB Twin Brushless Compressor+$400
Optional high-output compressor for the air suspension.
- ARB Air Inflation Kit+$150
ARB Pump Up Kit — 23 ft high-temp hose, quick-connect couplings, 150 psi rated.
- HD Swing Arms (Single Axle)+$2,400
- HD Swing Arms (Tandem)+$4,800
Technology Add Ons
- Technology Package+$12,500
The Technology add-ons together in one package. Your quote lists exactly what’s included.
- Autoleveling+$2,500
Pressure-based, corner-by-corner self-leveling with presets and cargo bias compensation.
- Weight Scale+$1,800
Live per-corner load, total weight, tongue weight estimate and a fishtail risk indicator.
- Overland Sentinel+$2,500
Real-time motion intelligence and diagnostics from the IMU: live G-forces, sway warning while towing, bump-severity scoring, vibration timeline, drive-smoothness coaching, roll-over alert, 24-hour motion history and an automated air-system leak test. Map features need the GPS Module.
- GPS+$1,800
Onboard multi-constellation GNSS receiver: live position, heading, speed, altitude and satellite fix, plus the Overland Sentinel Map view. Required for any GPS or navigation feature.
- Digital Awning Control Module+$500
Dashboard control of the powered awning (extend, retract, stop, presets). Without it the awning runs on the manual wall switch only.
- Dust & Smoke Reduction System (DSR)+$4,500
Cabin air filtration — military-grade Vortex pre-filter + AC Affinity charcoal final stage.
- Spotty VoiceBeta+$1,200
Lifetime (stays with the rig). Or $39/month after a 14-day free trial, cancel any time. Monthly belongs to the owner and ends if the rig is sold; switch to Lifetime any time.
"Hey Spotty": voice and chat control of the whole rig. Ask for tank levels, battery and pressures; command lights and pumps; stage air moves with spoken confirm on capable builds. Runs on the rig and works offline; stop and cancel always work. Lifetime: $1,200 once, stays with the rig.
Electrical
- Victron Orion XS 1400 DC-DC Charger+$450
- iPad Control Panel (vs Samsung)+$300
- Victron Energy Lynx Smart BMS 1000 NG (M10)+$1,249.50
External battery management system required for the Victron Lithium NG battery banks. Not included in the battery price.
- 24v 560 AH Lithium Battery Bank+$2,400
- Victron Energy Lithium NG Battery 25.6V 400Ah (2 x 200Ah)+$5,667.80
Victron Lithium NG battery bank, 25.6V 400Ah (2 x 200Ah). Requires the Lynx Smart BMS 1000 NG, priced separately.
- 3000W Inverter+$1,400
- Victron Energy Orion 24/12-70 DC-DC Converter+$130
Additional 12V output from the 24V system — for heavy 12V loads outside the camper.
Kitchen
- Microwave Oven Add-on+$800
- Electric Oven Add-on+$2,200
- Microwave/Air Fryer Combo+$1,200
- Step Down Outdoor Kitchen+$2,150
Step-down configuration of the slide-out kitchen.
- Furrion 1.9cu Microwave (Over-the-Fridge)+$1,100
Over-the-fridge placement. Available on Titan and Outland; not offered on Baja for now.
Exterior Equipment
- Heavy Duty Rock Sliders+$4,500
- A2 Electric Legless Awning+$3,500
Electric awning, no rear support legs required.
10'1" (300 cm) · 11'6" (350 cm) (+$300) · 13'1" (400 cm) (+$400)
- Roof Rails+$2,000
Powder-coated roof rails with integrated mounting system — mounting base for the awning and roof-mounted gear.
- HD 4 Corner Stabilizers (Actuated)+$4,400
Electrically actuated heavy-duty corner stabilizers.
- 3 Position Slide-Out Staircase+$2,800
Three-position deployable staircase. Replaces the standard motorized steps.
- Actuated Motorack+$4,800
Hydraulic actuated rear moto rack — 450 lbs capacity, remote-controlled.
- HD Aluminum Recovery Boards+$990
Aluminum recovery boards rated for 5-6 ton vehicles — traction and bridging in one tool.
- Molle Panel (Rear)+$300
- Rhino Hitch (Anodized, 7" Drop/Rise)+$394.99
2 Inch · 2.5 Inch (+$110) · 3 Inch (+$170)
Toilet · pick one
- OGO Composting Toilet+$1,800
- Tiny Separett+$2,200
- Incinerator Toilet+$4,500
Security
- 360 Security Camera (3-Camera Kit)+$1,900
4 solar powered cameras (4K) and 1 TB Hard Drive
- Hitch Lock - DO45++$150
Connectivity
- Starlink Mini+$999
Compact satellite internet — works anywhere with sky.
- Peplink MAX-BR1-MINI with ANT-MB-42G-S-B-6 Antenna+$1,600
Cellular 5G router with external antenna. Equipment + installation included.
Accessories
- Beddys Gentry Luxe Zipper Bedding+$464.95
Minky · Dual Comfort (+$145) · Cotton & Minky · Dual Comfort (+$145)
- Beddys Rowan Luxe Zipper Bedding+$464.95
Minky · Dual Comfort (+$145) · Cotton & Minky · Dual Comfort (+$145) · Cotton · Dual Comfort (+$165)
- Extra Temp/Humidity Sensors for Fridge & Freezer+$50
Current prices for the Outland Edition, updated from RREV’s build system. Prices may change; your quote confirms them. Start My Build
Questions about the Outland Edition?
Ask Spotty. He knows every spec, layout and option, and he can help you order.
Order your
Outland Edition
Secure your build with a $20,000 deposit. Delivery in 9-10 months. Every unit hand-built in California.
Start your order — $20,000 deposit
